COWL GRILLE REMOVAL/INSTALLATION

id091600801000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2.  Disconnect the joint pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)

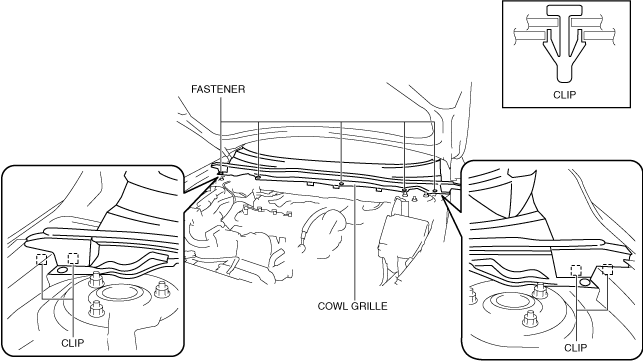

3.  Remove the clips and fasteners shown in the figure.

am3zzw00020676

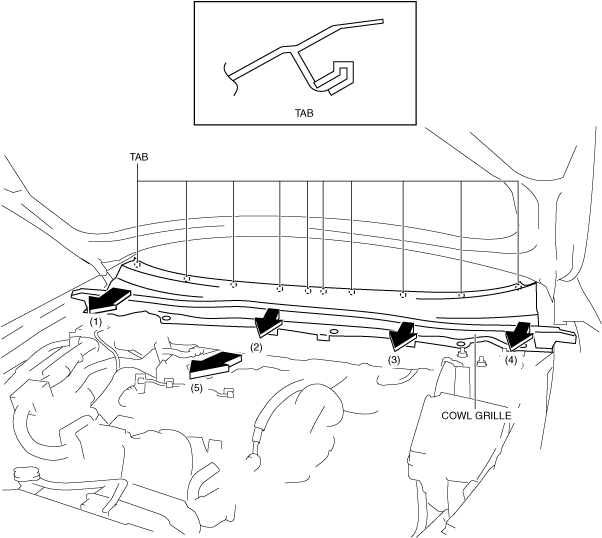

4.  Pull the cowl grille in the direction of the arrows in the order of (1), (2), (3), (4), (5) and remove it while detaching the tabs.

am3zzw00020677

5.  Install in the reverse order of removal.
