REAR SASH MOLDING INSTALLATION

id091600807100

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

Note

•  Double-sided adhesive tape has already been attached to the new rear sash molding.

1.  Carefully remove the adhesive remaining on the body using a razor blade.

2.  Remove any grease or dirt from the adhesion surface of the body.

3.  Peel off the backing of the double-sided adhesive tape.

4.  Hook the tab to the body in the position where the clip aligns with the sash hole.

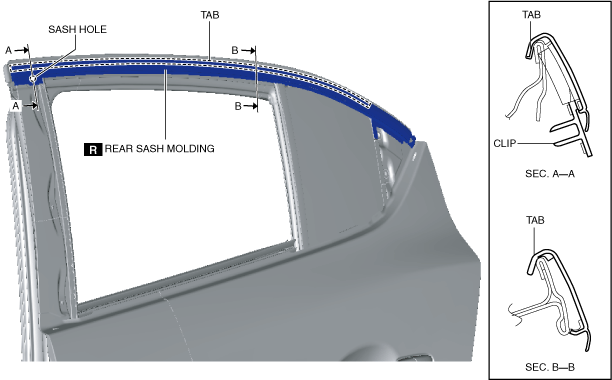

am3zzw00018851

Caution

•  Do not press the rear sash molding in any place other than the rubber areas.

5.  Press the rear sash molding in the direction of the arrow and install the clip to the body.

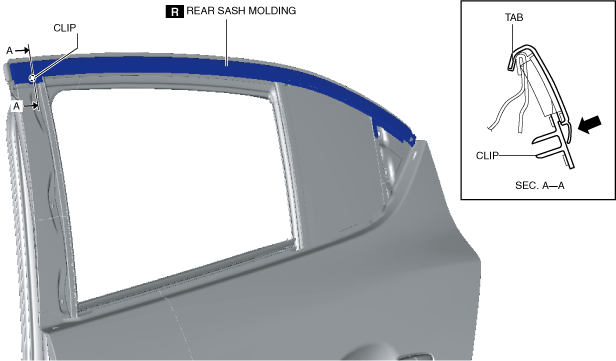

am3zzw00018852

6.  Press the rear sash molding from the vehicle front in the direction of the arrow and install the tab.

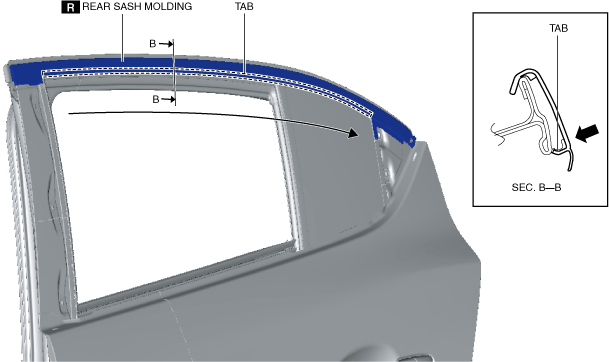

am3zzw00018853

Note

•  After installing the rear sash molding, verify that the tabs are connected properly to the body.

7.  Install the rear door garnish. (SeeREAR DOOR GARNISH REMOVAL/INSTALLATION.)

8.  Install the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)
