FLOOR UNDER COVER REMOVAL/INSTALLATION

id091600820200

Floor Under Cover No.1

1.  Lift up the vehicle.

2.  Remove the bolts.

am3zzw00018855

3.  Remove the fasteners.

4.  Remove the covers.

5.  Remove the bolts.

am3zzw00019118

6.  Remove the nuts.

7.  Remove the fasteners.

8.  Remove the cap nuts.

9.  Remove the floor under cover No.1 (LH).

10.  Remove the floor under cover No.1 (RH).

11.  Remove the clips.

12.  Install in the reverse order of removal.

Floor Under Cover No.2

1.  Lift up the vehicle.

2.  Remove the bolts.

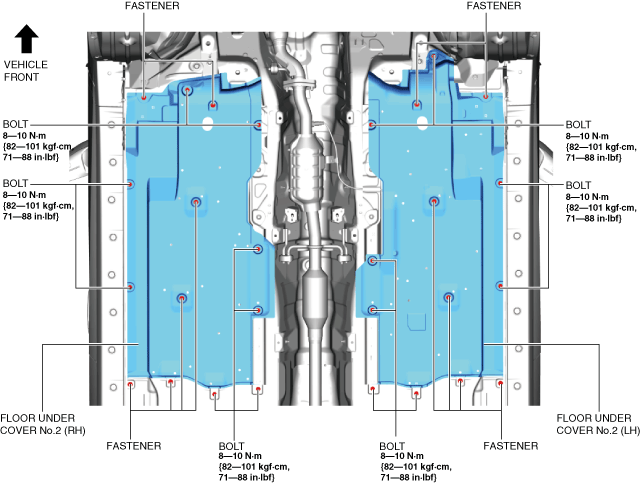

am3zzw00018857

3.  Remove the fasteners.

4.  Remove the floor under cover No.2 (LH).

5.  Remove the floor under cover No.2 (RH).

6.  Install in the reverse order of removal.
