CONSOLE LID REMOVAL/INSTALLATION

id091700607400

Console Lid Component Removal/Installation

Without electric parking brake

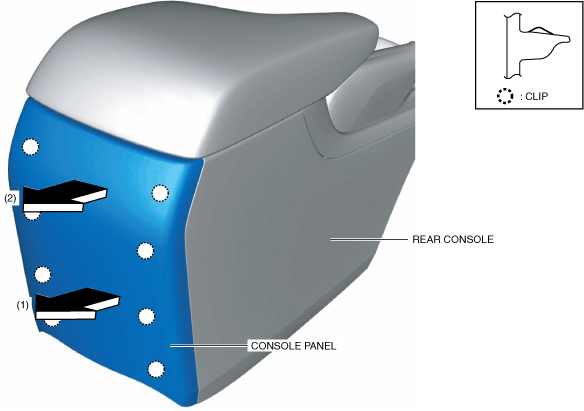

1.  Pull the console panel in the direction of the arrow in the order of (1), (2) and remove the clips.

am3zzw00018559

2.  Remove the console panel from the rear console.

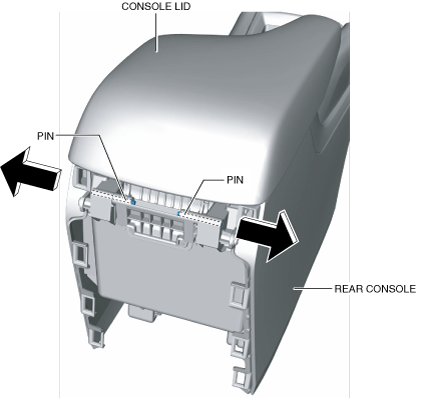

3.  Remove the pins in the direction of the arrows shown in the figure.

am3zzw00018002

Note

•  If the pins are deformed or crushed, replace the pins with new ones.

4.  Remove the console lid from the rear console.

5.  Install in the reverse order of removal.

With electric parking brake

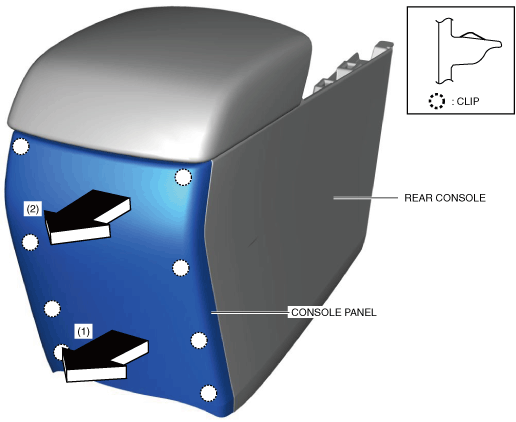

1.  Pull the console panel in the direction of the arrow in the order of (1), (2) and remove the clips.

am3zzw00018560

2.  Remove the console panel from the rear console.

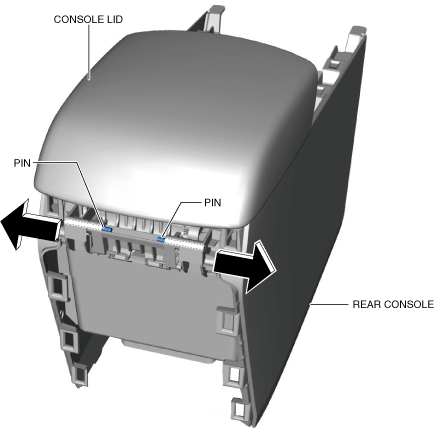

3.  Remove the pins in the direction of the arrows shown in the figure.

am3zzw00018561

4.  Remove the console lid from the rear console.

5.  Install in the reverse order of removal.

Console Lid Lock Removal/Installation

Without electric parking brake

Note

•  The console lid lock is integrated with the console lid inner.

•  When replacing the console lid lock, replace it with the console lid inner as a single unit.

1.  Insert a cardboard into the position shown in the figure.

am3zzw00019659

Caution

•  The surface of the console lid may be scratched if a tool is inserted without inserting cardboard. Always insert cardboard before inserting a tool to protect the surface of the console lid.

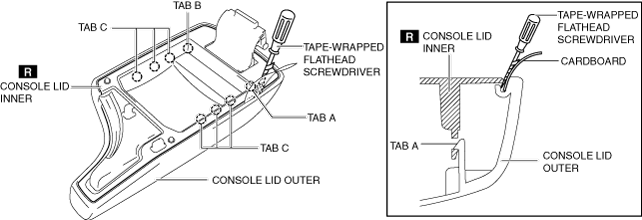

2.  Insert a tape-wrapped flathead screwdriver to the position shown in the figure and secure a clearance for inserting the remover tool.

am3zzw00020697

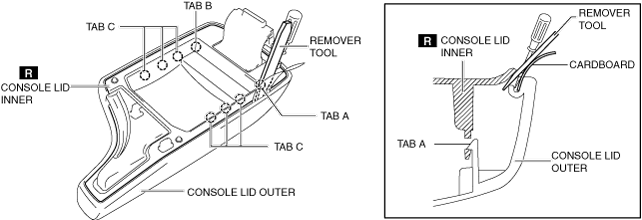

3.  Insert the remover tool into the clearance secured in Step 2.

am3zzw00019661

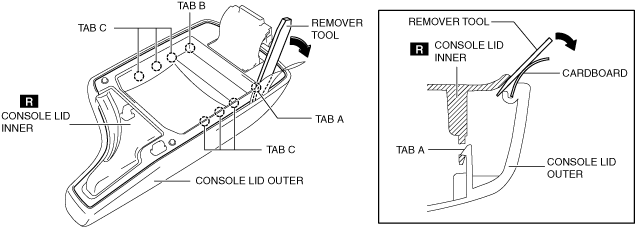

4.  Move the remover tool in the direction of the arrow shown in the figure and detach the tab A of the console lid outer from the console lid inner.

am3zzw00019662

5.  Perform Steps 1 to 4 for the opposite side and detach the tab B of the console lid outer from the console lid inner.

am3zzw00018007

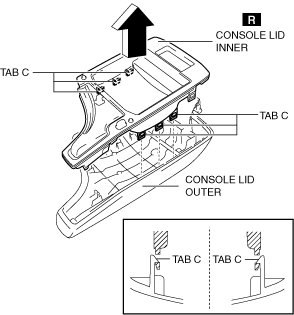

6.  Pull the console lid inner in the direction of the arrow shown in the figure and detach all the tabs C of the console lid outer from the console lid inner.

am3zzw00018008

7.  Remove the console lid inner.

8.  Install in the reverse order of removal.

With electric parking brake

Note

•  The console lid cannot be disassembled on vehicles with the electric parking brake.

•  When replacing the console lid lock, replace it with the console lid as a single unit.
