FRONT SCUFF PLATE REMOVAL/INSTALLATION

id091700801400

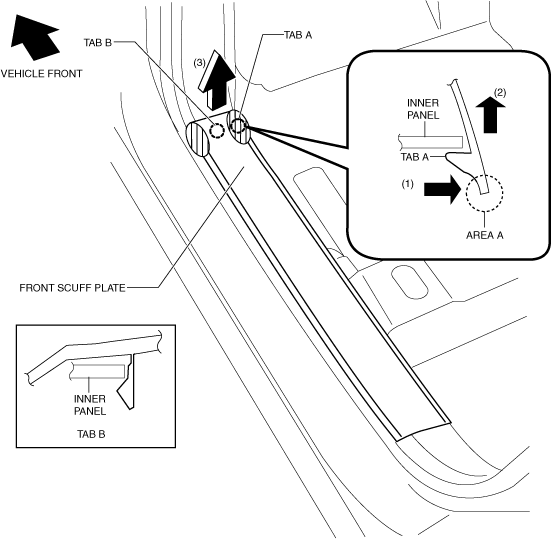

1.  Hold area A shown in the figure, open the front scuff plate in the direction of the arrow (1), move it in the direction of the arrow (2), and detach the tab A of the front scuff plate from the inner panel.

am3zzw00020708

2.  Hold the shaded areas shown in the figure, move the front scuff plate in the direction of the arrow (3), and detach the tab B of the front scuff plate from the inner panel.

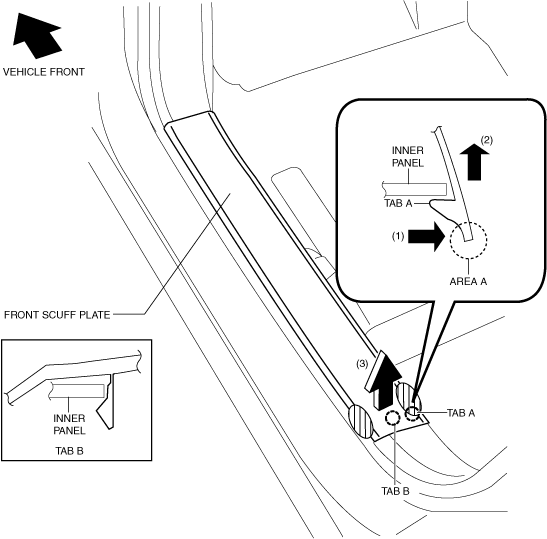

3.  Hold area A shown in the figure, open the front scuff plate in the direction of the arrow (1), move it in the direction of the arrow (2), and detach the tab A of the front scuff plate from the inner panel.

am3zzw00020709

4.  Hold the shaded areas shown in the figure, move the front scuff plate in the direction of the arrow (3), and detach the tab B of the front scuff plate from the inner panel.

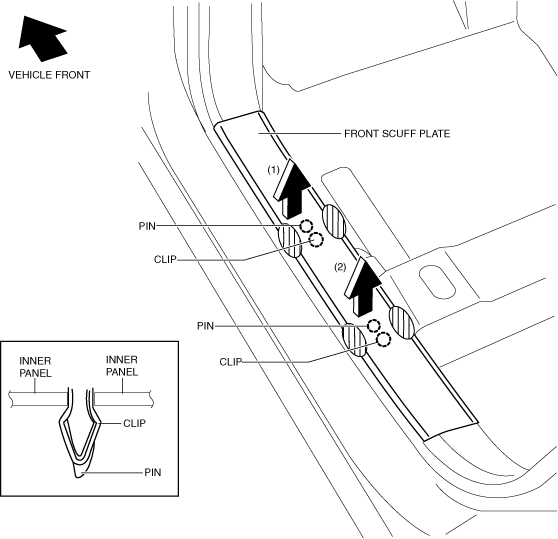

5.  Hold the shaded areas shown in the figure, move the front scuff plate in the direction of the arrow (1), and detach the clips from the inner panel.

am3zzw00020710

6.  Hold the shaded areas shown in the figure, move the front scuff plate in the direction of the arrow (2), and detach the clips from the inner panel.

7.  Pull out the pins and remove the front scuff plate.

8.  Install in the reverse order of removal.
