REAR SCUFF PLATE REMOVAL/INSTALLATION

id091700801500

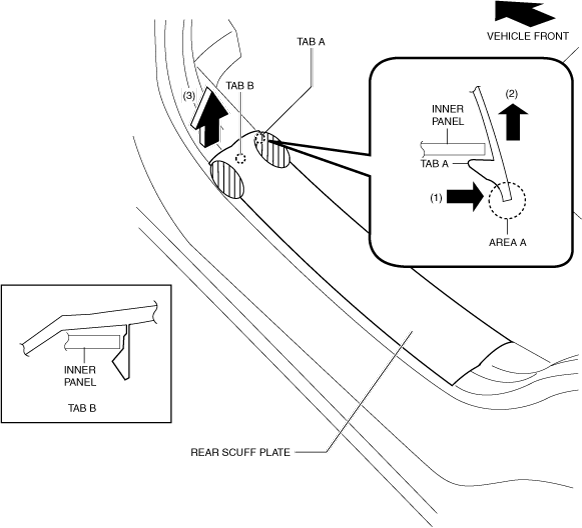

1.  Hold area A shown in the figure, open the rear scuff plate in the direction of the arrow (1), move it in the direction of the arrow (2), and detach the tab A of the rear scuff plate from the inner panel.

am3zzw00020711

2.  Hold the shaded areas shown in the figure, move the rear scuff plate in the direction of arrow (3), and detach tab B of the rear scuff plate from the inner panel.

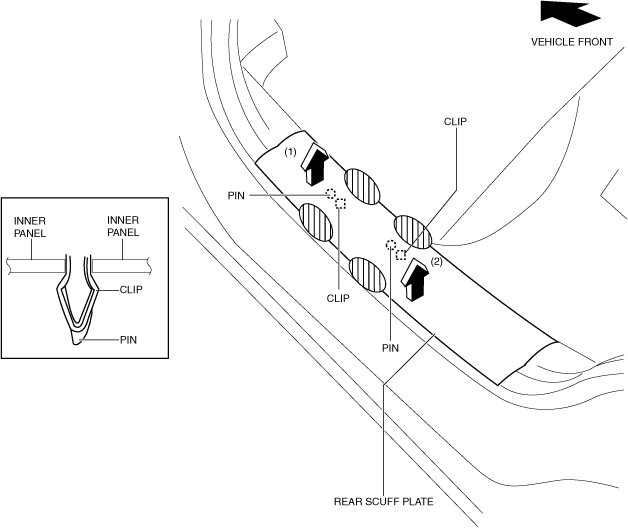

3.  Hold the shaded areas shown in the figure, move the rear scuff plate in the direction of the arrow (1), detach the clips from the inner plate, and pull out the pins.

am3zzw00020712

4.  Hold the shaded areas shown in the figure, move the rear scuff plate in the direction of the arrow (2), detach the clips from the inner panel, and pull out the pins.

5.  Hold the shaded areas shown in the figure, move the rear scuff plate in the direction of arrow the (1) and detach the tab B of the rear scuff plate from the inner panel.

am3zzw00020713

6.  Press the rear scuff plate in the direction of the arrow (2) shown in the figure and detach the tab A of the rear scuff plate from the inner panel.

7.  Remove the rear scuff plate.

8.  Install in the reverse order of removal.
