SUNVISOR REMOVAL/INSTALLATION

id091700801700

1.  Disconnect the negative battery cable (with vanity mirror illumination). (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the screw.

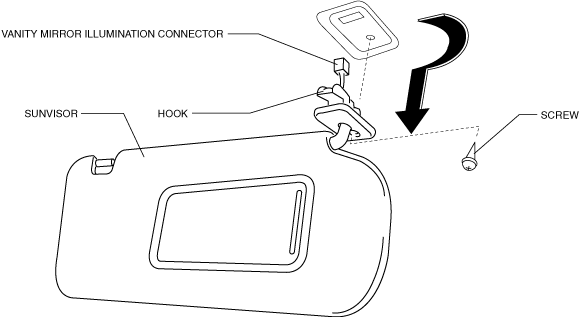

am3zzw00018591

3.  Remove the sunvisor in the direction of the arrow shown in the figure while detaching the hook.

4.  Disconnect the vanity mirror illumination connector (with vanity mirror illumination).

5.  Press the center adaptor tabs in the direction of the arrows (1) shown in the figure using two remover tools.

am3zzw00020120

6.  Remove the center adaptor in the direction of the arrow (2) shown in the figure.

7.  Install in the reverse order of removal.
