LIFTGATE UPPER TRIM REMOVAL/INSTALLATION

id091700803600

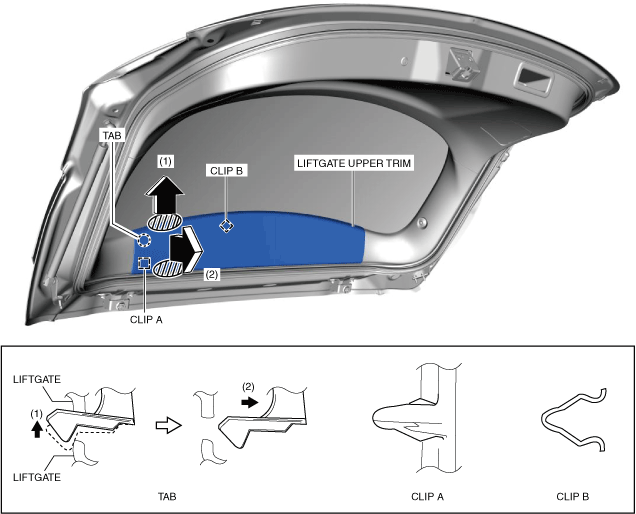

1.  Take the shaded areas shown in the figure, detach the tab while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach the clip A and clip B while pulling in the direction of the arrow (2).

am3zzw00020748

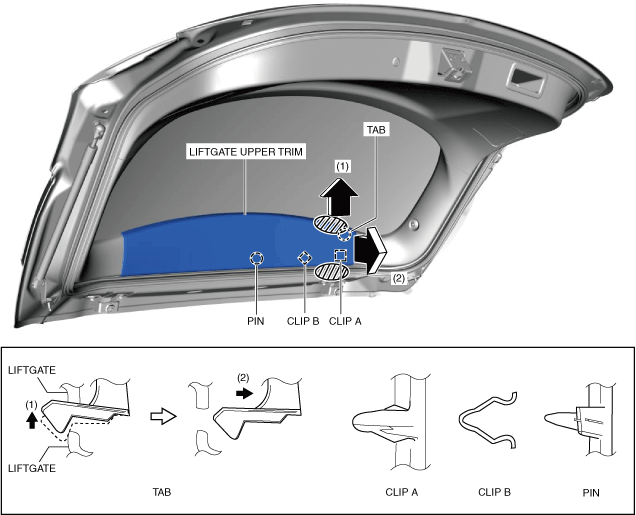

2.  Take the shaded areas shown in the figure, detach the tab while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach the clip A, clip B and pin while pulling in the direction of the arrow (2).

am3zzw00020749

3.  Install in the reverse order of removal.
