FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804200

Driver-side

1.  Disassemble in the order shown in the figure.

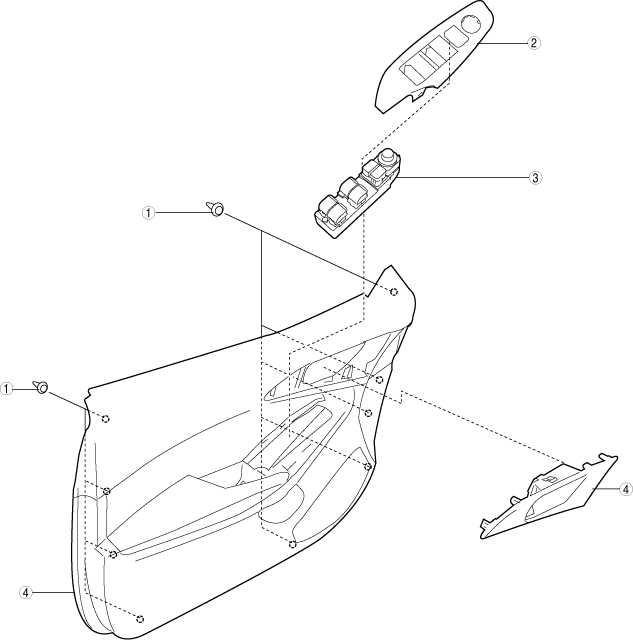

am3zzw00019078

1	Fastener
2	Switch panel cover (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
3	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
4	Decoration panel
5	Front door trim

2.  Assemble in the reverse order of disassembly.

Passenger-side

1.  Disassemble in the order shown in the figure.

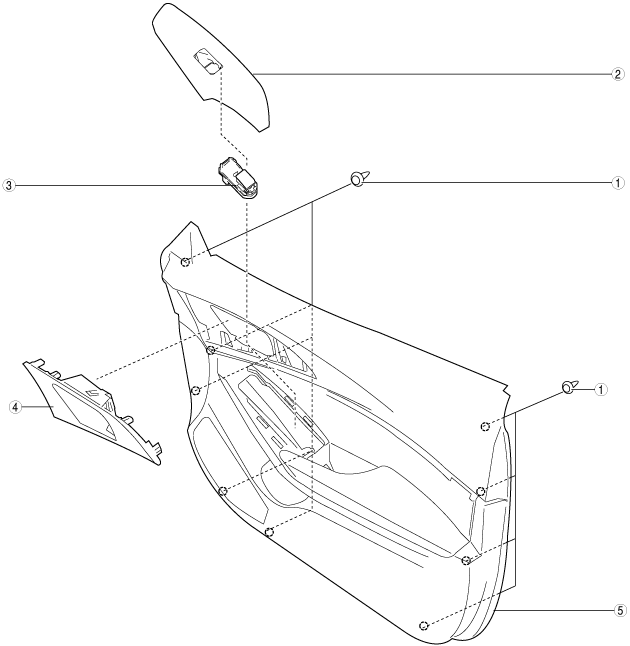

am3zzw00014343

1	Fastener
2	Switch panel cover (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
3	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
4	Decoration panel
5	Front door trim

2.  Assemble in the reverse order of disassembly.
