REAR DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804300

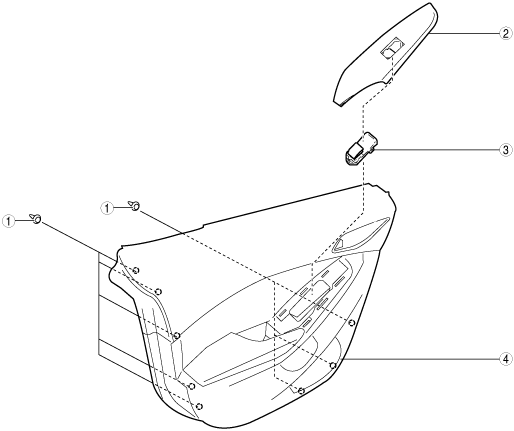

1.  Disassemble in the order shown in the figure.

am3uuw00011337

1	Fastener
2	Switch panel cover (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
3	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
4	Rear door trim

2.  Assemble in the reverse order of disassembly.
