Caution
• If the hooks and pins are removed forcefully, the guide may be damaged. Carefully remove the hooks and pins so as not to damage the guide.
am3zzw00020843
|

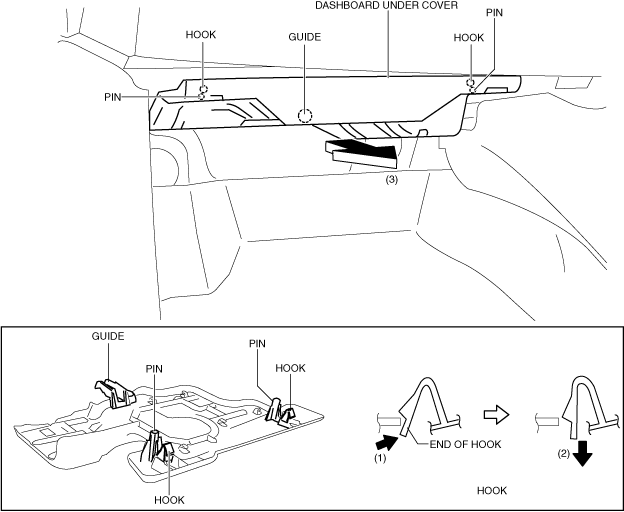

DASHBOARD UNDER COVER REMOVAL/INSTALLATION
id091700807200
1. Detach the hooks in the direction of the arrows in the order of (1), (2) shown in the figure.
am3zzw00020843
|
2. Remove the dashboard under cover in the direction of the arrow (3) shown in the figure while detaching the guide.
3. Install in the reverse order of removal.
