AUTO LEVELING SENSOR

id091800011100


Purpose

•  Detects the vehicle height and outputs it to the auto leveling control module/adaptive front lighting system (AFS) control module/adaptive LED headlights control module.

Function

•  Changes the detected vehicle height into a voltage value and outputs it to the auto leveling control module/adaptive front lighting system (AFS) control module/adaptive LED headlights control module.

Construction

•  Installed to the rear crossmember.
•  Consists of link No.1, link No.2 and the Hall sensor.
am3zzn00005452

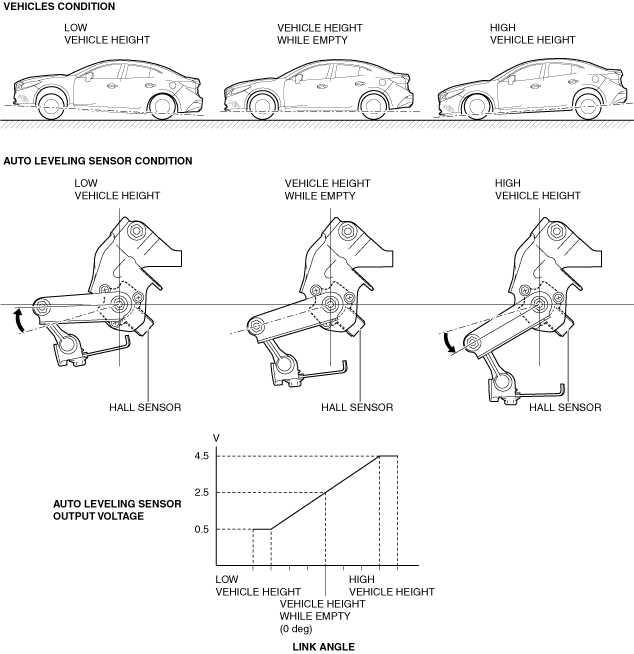

Operation

1.  If the rear crossmember slumps under a load and passengers, the auto leveling sensor link changes.

2.  The auto leveling sensor changes the voltage value according to the angles of the links and outputs to the auto leveling control module/adaptive front lighting system (AFS) control module/adaptive LED headlights control module.

am3zzn00005453

Fail-safe

•  Not applicable
