FRONT FOG LIGHT

id091800011300

Purpose

• By shining light in a wider area in front of the vehicle than the light from the headlights, visibility during poor weather conditions, such as rain and fog, has been improved. In addition, the visibility of the vehicle from on-coming vehicles, pedestrians, and other people has been improved.

Function

• Illuminates according to the light switch and front fog light switch operation.

Construction

• The front fog lights are positioned in the front bumper.

• Round-type front fog lights have been adopted.

• LED type front fog lights have been adopted.

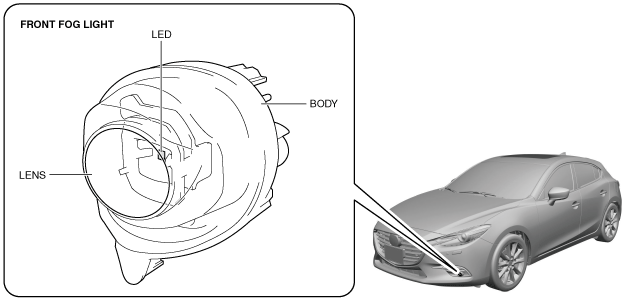

am3zzn00005459

Operation

1. With the TNS (parking lights) are illuminated, the start stop unit detects a front fog light signal when the fog light switch is operated to the F.FOG position.

2. The start stop unit sends the front fog light signal to the front body control module (FBCM) via CAN communication.

3. When the front body control module (FBCM) receives the front fog light signal, it turns the front fog light relay on.

4. When the front fog light relay turns on, the front fog light turns on.

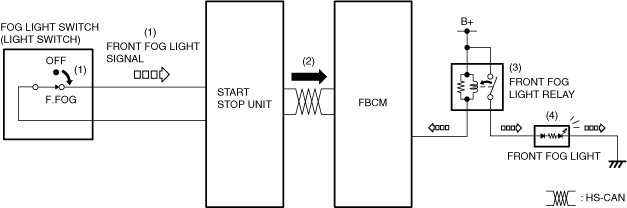

am3zzn00005460

Fail-safe

• Not applicable
