LICENSE PLATE LIGHT

id091800012100

Purpose

• The license plate lights shine light on the license plate during nighttime driving.

Function

• The license plate lights illuminate in conjunction with the operation of the light switch (TNS (parking lights)).

Construction

4SD

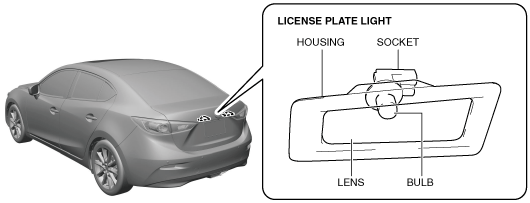

• The license plate lights are installed to the trunk lid.

am3zzn00005484

5HB

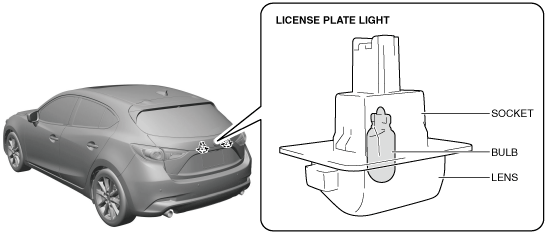

• The license plate lights are installed to the liftgate.

am3zzn00005485

Operation

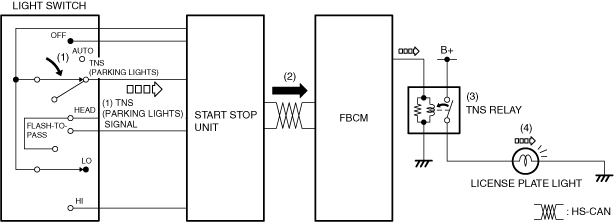

1. When the light switch is operated to the TNS (parking lights) position, the start stop unit detects a TNS (parking lights) signal.

2. The start stop unit sends the TNS (parking lights) signal to the front body control module (FBCM) as a CAN signal.

3. When the front body control module (FBCM) receives the TNS (parking lights) signal, it turns the TNS relay on.

4. When the TNS relay turns on, the license plate lights are illuminated.

am3zzn00005486

Fail-safe

• Not applicable
