ROOM LIGHT CONTROL SYSTEM

id091800012300


Outline

•  The room light control system changes the illumination condition and illumination level of the room lights (door position) according to whether the doors are opened/closed and locked/unlocked.

Structural View

am3zzn00005490

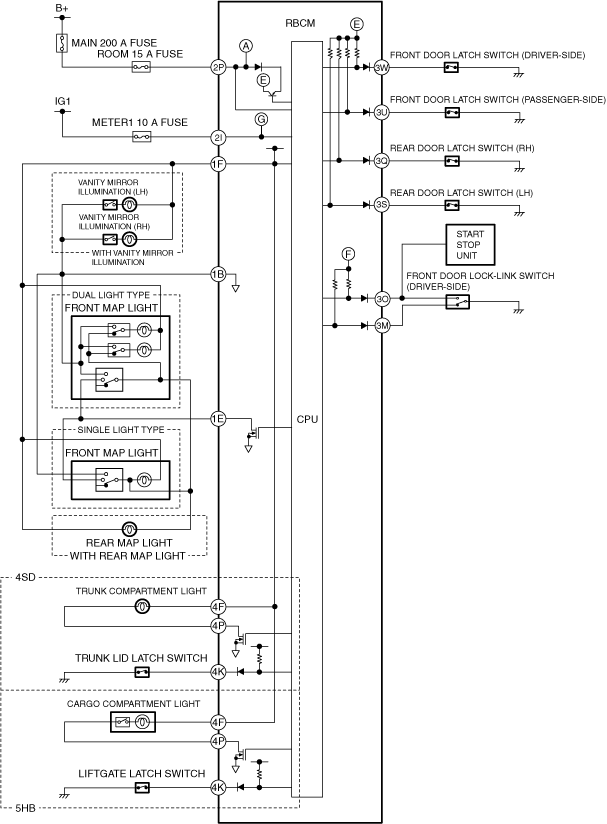

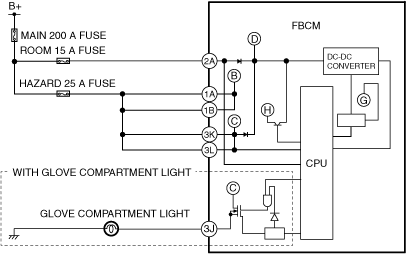

System Wiring Diagram

am3zzn00005491
am3zzn00005492

Operation

Operation condition

Interior light

Lights off condition

(Any of the following conditions is met)

Illumination period

Brightness level
With ignition switched ON (engine off or on), a condition is detected when any door is opened (any door latch switch is on)
—
100 %
•  All doors closed except for trunk lid (4SD)/liftgate (5HB). (All door latch switches are off.)
With ignition switched off or ACC, the room light switch for the front map light is in the DOOR position and all doors closed (all door latch switches are off), a condition is detected when any door is opened (any door latch switch is on)
Approx. 30 min*1
100 %
•  After illumination time elapses*2
•  All doors closed except for trunk lid (4SD)/liftgate (5HB). (All door latch switches are off.)
With any door opened (any door latch switch is on) while ignition is switched off or ACC and the room light switch for the front map light is in the DOOR position, a condition is detected when all doors are closed (all door latch switches are off)
•  Approx. 5 s*3
•  Approx. 15 s*1, *4
60 %
•  After illumination time elapses
•  Any door opened (any door latch switch is on)
•  Lock driver's door lock knob. (Door lock-link switch is in lock position.)
•  Ignition is switched ON (engine off or on).
With all doors closed (all door latch switches are off) while ignition is switched off or ACC and the room light switch for the front map light is in the DOOR position, the driver’s door lock knob is switched from lock to unlock
Approx. 30 s
100 %
•  After illumination time elapses
•  Any door opened (any door latch switch is on)
•  Lock driver's door lock knob. (Door lock-link switch is in lock position.)
•  Ignition is switched ON (engine off or on).
With all doors closed (all door latch switches are off) while ignition is switched ACC or ON (engine off or on) and the room light switch for the front map light is in the DOOR position, the ignition switched off condition is detected
Approx. 15 s
100 %
•  After illumination time elapses
•  Any door opened (any door latch switch is on)
•  Lock driver's door lock knob. (Door lock-link switch is in lock position.)
•  Ignition is switched ON (engine off or on).
•  The trunk lid is opened. (4SD)
•  With the cargo compartment light switch is on, the liftgate is opened. (5HB)
Approx. 30 min*1
100 %
•  After illumination time elapses
•  Trunk lid (4SD)/liftgate (5HB) closed.
•  Cargo compartment light switch is off. (5HB)

*1  :The illumination time can be switched by using the Mazda Modular Diagnostic System (M-MDS) or the center display (with center display). (See LIGHTING SYSTEM PERSONALIZATION.)
*2  :After the interior light is turned off according to the cancel conditions, it turns on again if any one of the following conditions is met.
―  Ignition is switched ON (engine off or on).
―  After all doors are closed, any door is re-opened (after all door latch switches are off, any door latch switch is on).
*3  :There is no remote transmitter inside vehicle.
*4  :There is a remote transmitter inside vehicle.

×: With room light control system
—: No airflow

Type

Installation position

Room light control system
Front map light
Single light type
Front area of roof
×
Dual light type (without sunglasses holder)
×
Dual light type (with sunglasses holder)
×
Rear map light
(with rear map light)
Center area of roof
×
Trunk compartment light (4SD)
Trunk compartment
×
Cargo compartment light (5HB)
Cargo compartment
×*1
Vanity mirror illumination
(with vanity mirror illumination)
Sunvisor
—
Glove compartment light
(with glove compartment light)
Glove compartment
—

*1  :While the cargo compartment light switch is on.

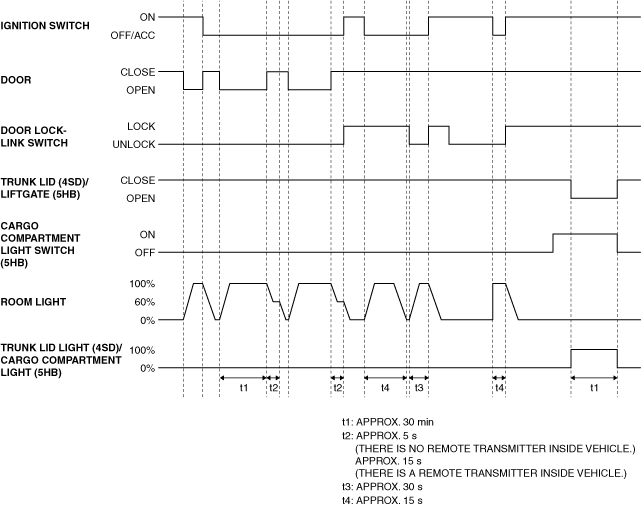

am3zzn00005501
