CARGO COMPARTMENT LIGHT

id091800012600

Purpose

• The cargo compartment light illuminates the cargo compartment interior when the liftgate is opened.

Function

• When the liftgate is opened, illuminates by the cargo compartment light switch turning on.

Construction

• The cargo compartment light is installed to the trunk side upper trim.

am3zzn00005502

Operation

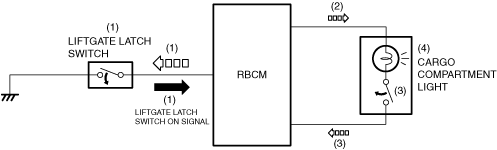

1. When the liftgate opens, the liftgate latch switch turns on and the rear body control module (RBCM) detects a liftgate latch switch on signal.

2. When the rear body control module (RBCM) detects the liftgate latch switch on signal, electric current flows to the cargo compartment light.

3. When the cargo compartment light switch turns on, electric current flows to the cargo compartment light bulb.

4. When electric current flows to the cargo compartment light bulb, the cargo compartment light bulb illuminates.

am3zzn00005503

Fail-safe

• Not applicable
