HEADLIGHT HIGH-BEAM INDICATOR LIGHT

id091800013600

Purpose

• Notifies the user that the headlights HI are illuminated.

Function

• When the instrument cluster receives the headlight HI signal sent from the front body control module (FBCM) via CAN communication, it turns the headlight high-beam indicator light on.

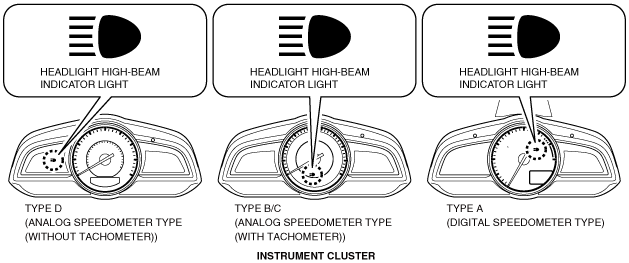

Construction

• Displayed in the instrument cluster.

am3zzn00006347

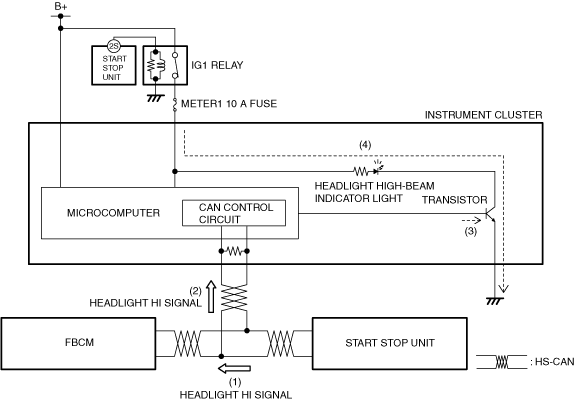

Operation

1. When the light switch is moved to any of the following positions, the start stop unit sends (1) a headlight HI signal to the front body control module (FBCM) via CAN communication.

• Light switch at HEAD position and dimmer switch at HI position

• Dimmer switch at FLASH-TO-PASS position

2. When the front body control module (FBCM) receives the headlight HI signal with the ignition switched ON (engine off or on), it sends (2) a headlight HI signal to the instrument cluster.

3. The instrument cluster turns the transistor on (3) based on the headlight HI signal.

4. When the transistor turns on, a ground circuit with the headlight high-beam indicator light is established, and the headlight high-beam indicator light turns on (4).

am3zzn00005512

Fail-safe

• Not applicable
