LED HEADLIGHT WARNING LIGHT

id091800014700

Purpose

• The LED headlight warning light notifies the driver the following conditions:

― Headlight auto leveling system non-initialization

― Headlight auto leveling system malfunction

― Adaptive front lighting system (AFS) malfunction (with adaptive front lighting system (AFS))

― Adaptive LED headlights malfunction (with adaptive LED headlights)

― LED headlight malfunction

Function

• The instrument cluster turns on/flashes the LED headlight warning light based on the following signals:

Signal name

Sending module/part name

Communication method

LED headlight warning light operation status

Headlight auto leveling system non-initialization signal

Auto leveling control module/Adaptive front lighting system (AFS) control module/Adaptive LED headlights control module

HS-CAN

Flash

•  Headlight auto leveling system malfunction signal

•  Adaptive front lighting system (AFS) malfunction signal (with adaptive front lighting system (AFS))

•  Adaptive LED headlights malfunction signal (with adaptive LED headlights)

•  LED headlight malfunction signal

On

Signal name	Sending module/part name	Communication method	LED headlight warning light operation status
Headlight auto leveling system non-initialization signal	Auto leveling control module/Adaptive front lighting system (AFS) control module/Adaptive LED headlights control module	HS-CAN	Flash
• Headlight auto leveling system malfunction signal • Adaptive front lighting system (AFS) malfunction signal (with adaptive front lighting system (AFS)) • Adaptive LED headlights malfunction signal (with adaptive LED headlights) • LED headlight malfunction signal	On

• The flash pattern of the LED headlight warning light is as shown in the figure.

am3zzn00005524

Construction

• The LED headlight warning light is built into the instrument cluster.

am3zzn00006357

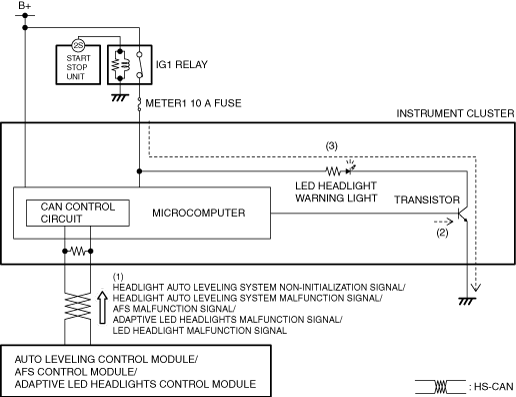

Operation

1. When the auto leveling control module/adaptive front lighting system (AFS) control module/adaptive LED headlights control module detects the headlight auto leveling system non-initialization, a headlight auto leveling system/adaptive front lighting system (AFS)/adaptive LED headlights malfunction, or an LED headlight malfunction, it sends (1) a headlight auto leveling system non-initialization, headlight auto leveling system/adaptive front lighting system (AFS)/adaptive LED headlights malfunction, or an LED headlight malfunction signal to the instrument cluster via CAN communication.

2. The instrument cluster turns the transistor on (2) based on each signal.

3. When the transistor turns on intermittently, the LED headlight warning light flashes (3), when it turns on continuously, the LED headlight warning light turns on (3).

am3zzn00005526

Fail-safe

• Not applicable
