VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION

id091800808200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Insert a remover tool into the service hole in the position shown in the figure.

aaxjjw00020389

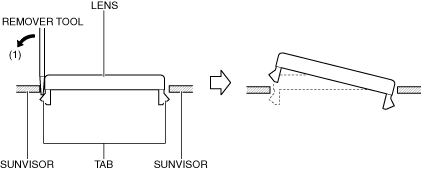

3.  Move the remover tool in the direction of the arrow (1) shown in the figure to pull out the lens tabs from the sunvisor.

aaxjjw00020390

4.  Remove the lens.

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5%).

5.  Remove the vanity mirror illumination bulb.

aaxjjw00020391

6.  Install in the reverse order of removal.
