REAR FOG LIGHT SHORT CORD REMOVAL/INSTALLATION

id091800901000

4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Disconnect the connector.

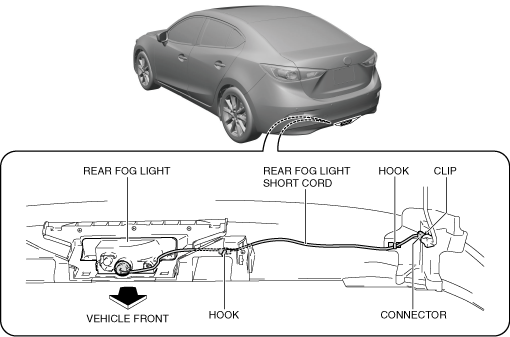

aaxjjw00020445

3.  Remove the clip.

aaxjjw00020446

4.  Remove the rear fog light short cord from the hooks.

aaxjjw00020447

5.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

aaxjjw00020448

6.  Remove the rear fog light short cord.

7.  Install in the reverse order of removal.
