WASHER MOTOR

id091900001600

Purpose, Function

• Supplies washer fluid in the washer tank to the washer nozzles.

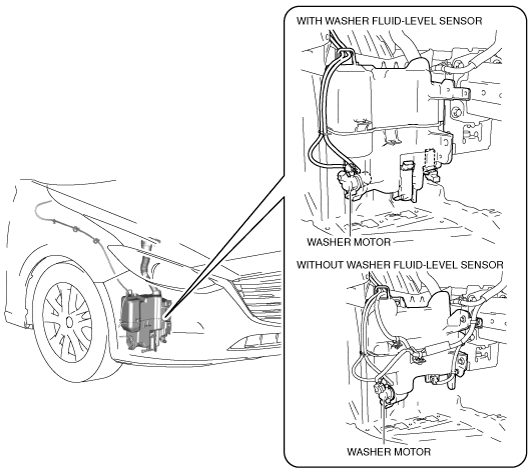

Construction

• The washer motor is installed to the washer tank.

am3zzn00005959

Operation

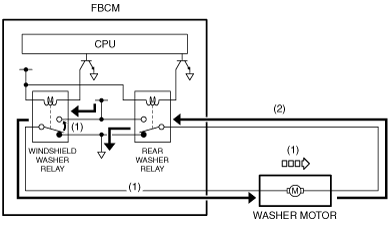

Windshield washer

1. When the windshield washer switch is on, the windshield washer relay turns on and current flows to the washer motor.

2. When current flows from the windshield washer relay to the washer motor, the washer motor operates to supply washer fluid to the windshield washer nozzles.

am3uun00003108

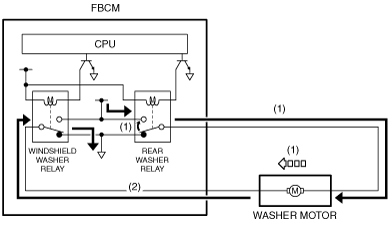

Rear washer (5HB)

1. When the rear washer switch is on, the rear washer relay turns on and current flows to the washer motor.

2. When current flows from the rear washer relay to the washer motor, the washer motor operates to supply washer fluid to the rear washer nozzle.

am3uun00003109

Fail-safe

• Function not equipped.
