REAR WIPER MOTOR

id091900001800

Purpose

• The rear wiper motor operates the rear wiper arm and blade using the motor rotation.

Function

• The rear wiper motor generates rotation force using the current from the rear body control module (RBCM) which is input according to the rear wiper and washer switch operation.

Construction

am3zzn00005960

Operation

1. The rear wiper motor rotates the motor based on the current from the rear body control module (RBCM).

2. When the motor rotates, rotation force is transmitted to the rear wiper arm and blade to operate it.

3. When the rear wiper arm and blade is operated to the park position, the auto stop switch turns on and the rear wiper arm and blade stops at the park position.

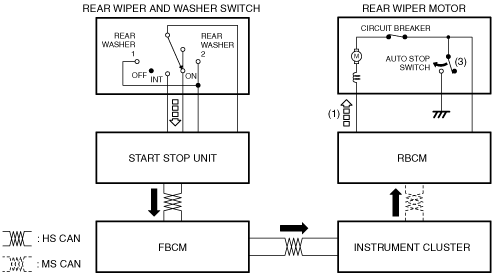

am3uun00003111

Fail-safe

• Function not equipped.
