REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION

id091900801200

Rear Wiper Arm

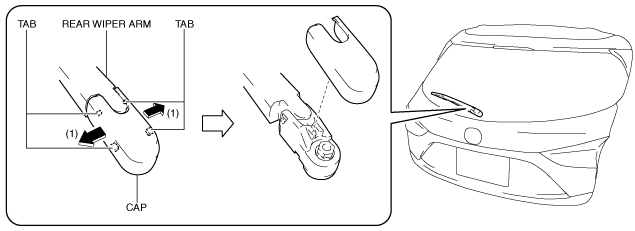

1.  Pull the cap in the direction of arrows (1) shown in the figure and detach the cap tabs from the rear wiper arm.

am3uuw00010578

2.  Remove the cap.

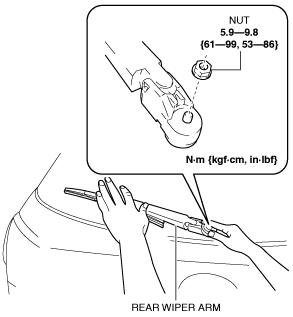

3.  Remove the nut with the rear wiper arm pressed as shown in the figure.

am3uuw00010579

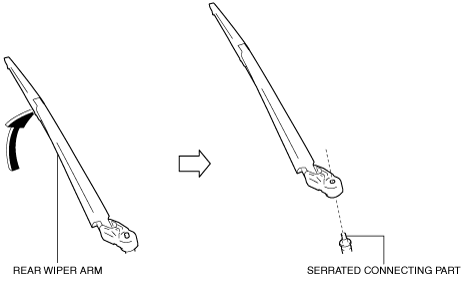

4.  Raise the rear wiper arm as shown in the figure and pull out the rear wiper arm from the serrated connecting part.

am3uuw00010580

5.  Install in the reverse order of removal.

6.  Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT.)

Rear wiper arm installation note

1.  Clean the serrated connecting part with a wire brush before installing the rear wiper arm.

am3uuw00010581

Rear Wiper Blade

1.  Move the rear wiper blade in the direction of arrow (1) shown in the figure and detach the rear wiper blade from the rear wiper arm.

am3uuw00010582

2.  Remove the rear wiper blade.

3.  Install in the reverse order of removal.
