REAR WASHER NOZZLE ADJUSTMENT

id091900802300

Caution

•  If the nozzle angle is adjusted with excessive force by inserting a needle or similar thin tool into the rear washer nozzle, it could damage the nozzle internally. When adjusting the rear washer nozzle, be careful not to apply excessive force.

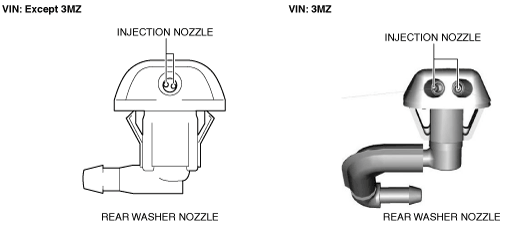

1.  Insert a needle or similar thin tool into the rear washer nozzle and adjust the area where washer fluid is sprayed as shown in the figure.

am3zzw00015790

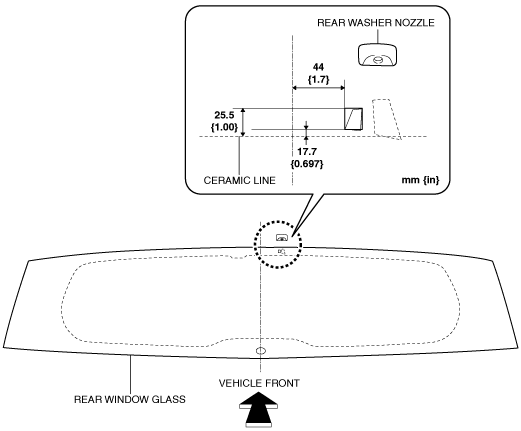

VIN: Except 3MZ

am3uuw00010616

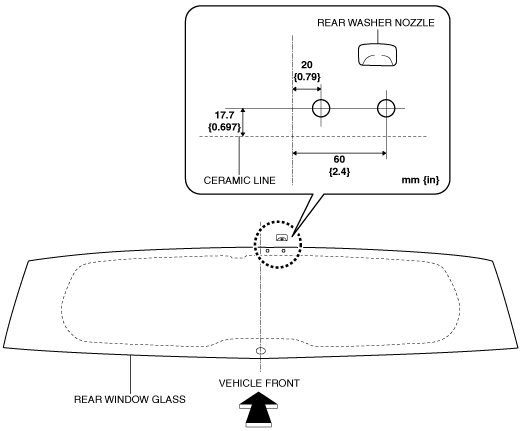

VIN: 3MZ

am3uuw00012815
