CENTER ROOF ANTENNA REMOVAL/INSTALLATION

id092000801600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Rear assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

3.  Partially peel back the headliner.

Note

•  If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.

4.  Disconnect the connector.

am3zzw00015805

5.  Remove the nut.

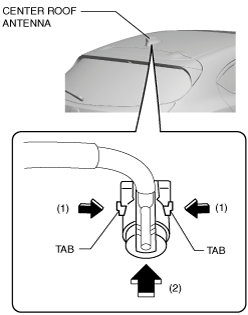

6.  While pressing the center roof antenna tabs in the direction of the arrows (1) shown in the figure, press the center roof antenna in the direction of the arrow (2) to detach the center roof antenna tabs from the body.

am3uuw00011509

7.  Remove the center roof antenna.

8.  Install in the reverse order of removal.
