CD PLAYER [WITH CENTER DISPLAY]

id0920zz113700


Purpose, Function

•  The CD player sends the inserted CD file information to the connectivity master unit (CMU), and an audio signal to the tuner and amp unit (TAU).

Specification

Type

Playback function file
Music/MP3/WMA/AAC CD player
•  Music data (CD-DA)
•  MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) file


Construction

•  A CD player is installed to the front console.

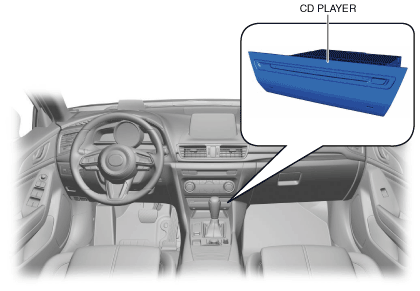

am3zzn00005721

Input/output signal table

Terminal

Signal
A
Ground
B
—
C
—
D
Illumination (-)
F
—
G
Local HS-CAN (+)
H
Local HS-CAN (-)
J
Shield ground
L
CD audio output LH (+)
N
CD audio output LH (-)
P
CD audio output RH (+)
R
CD audio output RH (-)
S
—
T
—*1
U
—*1
V
—*1
W
TNS signal input
X
—
Y
ACC
Z
B+

*1  :Not used.

Operation

•  For the CD player operation, refer to the ENTERTAINMENT SYSTEM. (See ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY].)

Fail-safe

•  Function not equipped.
