FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION

id092100000300

Front Wiring Harness Protector No.1

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2. Remove the air cleaner case. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.6].)

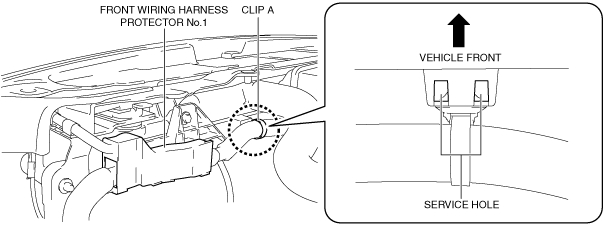

3. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

am3zzw00020826

4. While pressing the tabs of clip A in the direction of the arrows (1) shown in the figure, pull clip A in the direction of the arrow (2) shown in the figure to detach the tabs of clip A from the radiator.

am3zzw00020822

5. Pull out clip A.

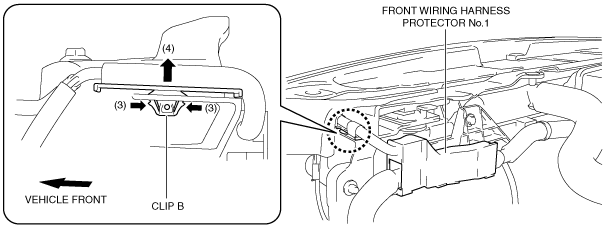

6. While pressing the tabs of clip B in the direction of the arrows (3) shown in the figure, pull clip B in the direction of the arrow (4) shown in the figure to detach the tabs of clip B from the front bumper.

am3zzw00020820

7. Pull out clip B.

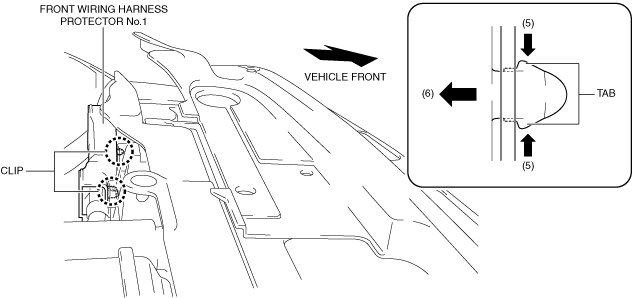

8. While pressing the clip tabs in the direction of the arrows (5) shown in the figure, pull the front wiring harness protector No.1 in the direction of the arrow (6) to detach the clip tabs from the radiator.

am3zzw00020813

9. Detach all the clip tabs from the radiator and pull out the front wiring harness protector No.1 from the radiator.

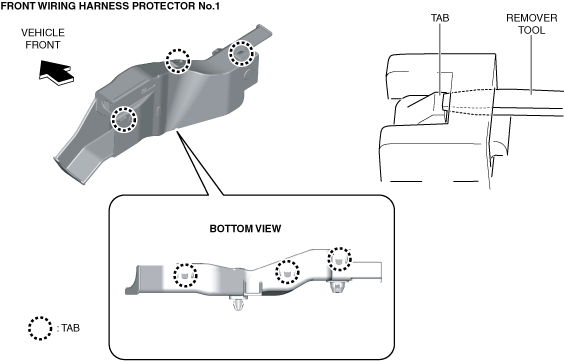

10. Insert a remover tool into the front wiring harness protector No.1 tabs in the positions shown in the figure.

am3zzw00020814

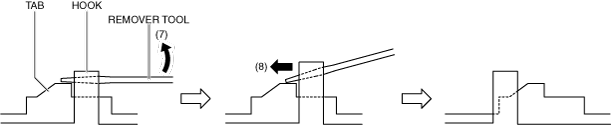

11. While lifting up the hook in the direction of the arrow (7) shown in the figure using a remover tool, pull the hook in the direction of the arrows (8) shown in the figure to detach the tab from the hook.

am3zzw00020823

12. Detach all the tabs from hooks and remove the front wiring harness protector No.1.

13. Install in the reverse order of removal.

Front Wiring Harness Protector No.2

2. Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

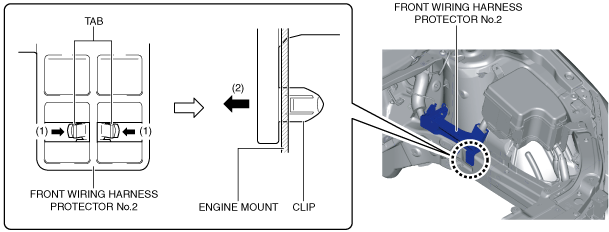

3. While pressing the clip tabs of front wiring harness protector No.2 in the direction of the arrows (1) shown in the figure, pull the clip of front wiring harness protector No.2 in the direction of the arrow (2) shown in the figure to detach the clip tabs of front wiring harness protector No.2 from the engine mount.

am3zzw00020815

4. Pull out the clip.

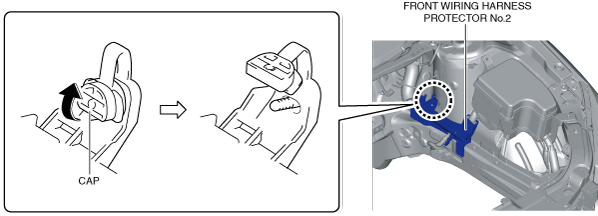

5. Lift up the cap of front wiring harness protector No.2 in the direction of the arrow shown in the figure.

am3zzw00020816

6. Pull out the front wiring harness protector No.2 from the stud bolt and set it aside as shown in the figure.

am3zzw00020824

7. While pressing the clip tabs in the direction of the arrows (3) shown in the figure, push out the clip in the direction of the arrow (4) shown in the figure to detach the clip tabs from the front wiring harness protector No.2.

am3zzw00020817

8. Pull out the clip.

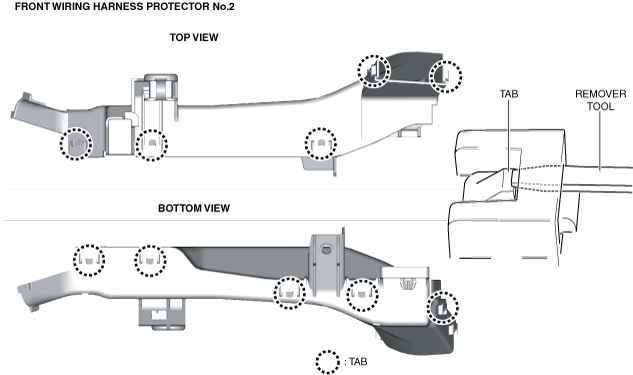

9. Insert the remover tool into the front wiring harness protector No.2 tabs in the positions shown in the figure.

am3zzw00020818

10. While lifting up the hook in the direction of the arrow (5) shown in the figure using a remover tool, pull the hook in the direction of the arrows (6) shown in the figure to detach the tab from the hook.

am3zzw00020825

11. Detach all the tabs from hooks and remove the front wiring harness protector No.2.

12. Install in the reverse order of removal.
