MAIN FUSE

id092100800000


Purpose

•  If electric current of the specified value or more flows to each fuse, the fuse melts due to heat generation to protect the systems and parts downstream of the fuse.

Function

•  If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.

Construction

•  Installed to the battery terminal (+).

With i-ELOOP

SKYACTIV-G 1.5, SKYACTIV-G 2.0

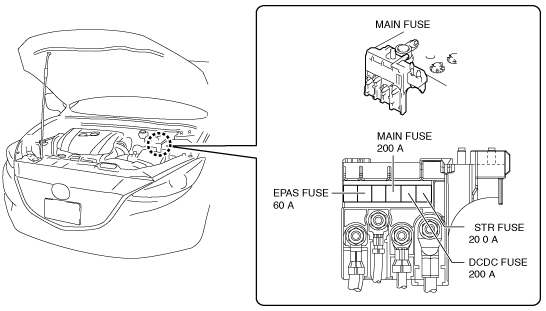

am3zzn00006012

SKYACTIV-D 2.2

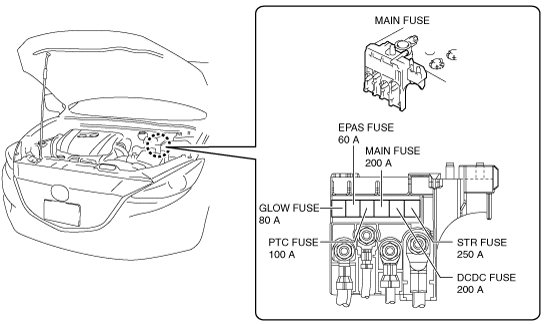

am3zzn00006013


Without i-ELOOP

SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5, MZR 1.6

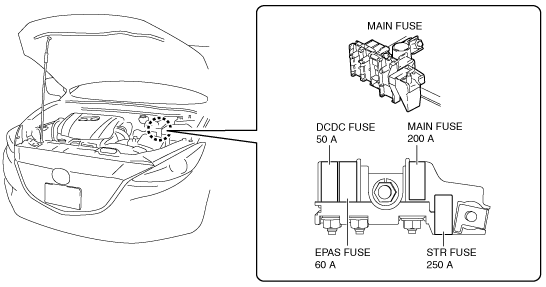

am3zzn00006014

SKYACTIV-D 1.5, SKYACTIV-D 2.2

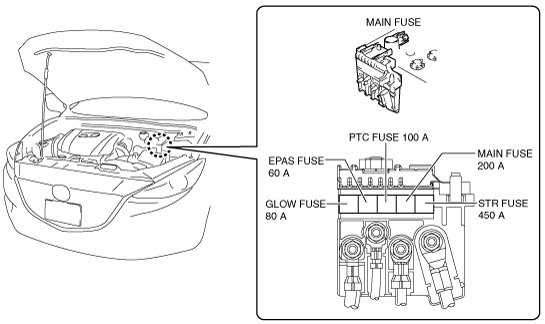

am3zzn00006015


Operation

1.  If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.

2.  Current between the fuse and ground is interrupted.


Fail-safe

•  Function not equipped.
