RELAY LOCATION
id092100800600
SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5, MZR 1.6
am3zzw00018626
|
|
1
|
Ignition relay (ACC_STAB)
|
|
2
|
Brake light relay
|
|
3
|
Cooling fan relay No.3
|
|
4
|
A/C relay
|
|
5
|
Ignition relay (IG1_STAB)
|
|
6
|
Steering warmer relay
|
|
7
|
Headlight HI relay
|
|
8
|
TNS relay
|
|
9
|
Blower relay
|
|
10
|
Front fog light relay
|
|
11
|
Horn relay
|
|
12
|
Cooling fan relay No.2
|
|
13
|
Main relay
|
|
14
|
Fuel injector relay
|
|
15
|
Fuel pump relay
|
|
16
|
Electric variable valve timing relay
|
|
17
|
Electric AT oil pump relay
|
|
18
|
Starter relay
|
|
19
|
Headlight LO relay (RH)
|
|
20
|
• Headlight LO relay (Bulb type)
• Headlight LO relay (LH) (LED type)
|
|
21
|
IG1 relay
|
|
22
|
ACC relay
|
|
23
|
Rear window defogger relay
|
|
24
|
Cooling fan relay No.1
|

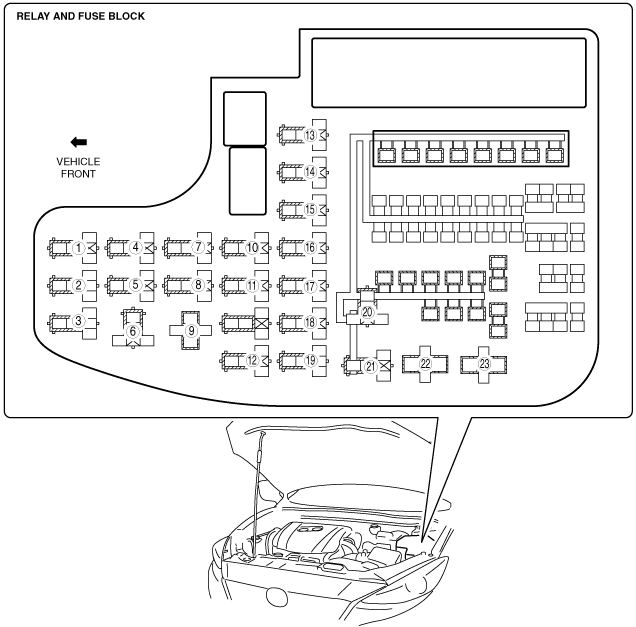

SKYACTIV-D 1.5, SKYACTIV-D 2.2
am3zzw00018627
|
|
1
|
Ignition relay (ACC_STAB)
|
|
2
|
Brake light relay
|
|
3
|
Rear window defogger relay
|
|
4
|
A/C relay
|
|
5
|
Ignition relay (IG1_STAB)
|
|
6
|
Steering warmer relay
|
|
7
|
Headlight HI relay
|
|
8
|
TNS relay
|
|
9
|
Blower relay
|
|
10
|
Front fog light relay
|
|
11
|
Horn relay
|
|
12
|
Check connector
|
|
13
|
Main relay
|
|
14
|
Blow-by heater relay
|
|
15
|
Fuel pump relay
|
|
16
|
ACC relay
|
|
17
|
Electric AT oil pump relay
|
|
18
|
Starter relay
|
|
19
|
Headlight LO relay (RH)
|
|
20
|
• Headlight LO relay (Bulb type)
• Headlight LO relay (LH) (LED type)
|
|
21
|
IG1 relay
|
|
22
|
Cooling fan relay No.2
|
|
23
|
Cooling fan relay No.1
|
