ACCESSORY SOCKET
id092100900400
Purpose
• By inserting the plug of an electrical device, 12 V (maximum 120 W) of power is supplied enabling use of the electrical device in the vehicle.
Function
• When the ignition is switched to ACC or ON (engine off or on), 12 V (maximum 120 W) of power is supplied.
Construction
• A cap is installed to prevent penetration of foreign matter in the socket such as dust.

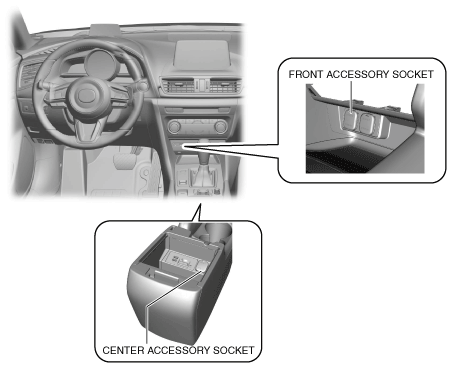

• A front accessory socket is installed to the front console. (With front accessory socket)
• A center accessory socket is installed inside the rear console. (With center accessory socket)
Operation
Front accessory socket
1. When the ignition is switched to ACC or ON (engine on or off), power is supplied constantly.
Center accessory socket
1. Power is supplied constantly.
Fail-safe
• Function not equipped.
