POWER SYSTEMS

id092100960000


Outline

•  System in which electric current from the battery supplies power to each electrical part.
•  There are mainly three types of electric power supply as follows, which are divided into system-supplied power and power used by parts.
―  Supply of direct power from battery
―  Supply of power by switching ignition ON (engine off)
―  Supply of power by switching ignition ON (engine on)

Specification (wituout i-ELOOP)

SYKACTIV-G 1.5, SYKACTIV-G 2.0, SYKACTIV-G 2.5, MZR 1.6

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Main fuse
DCDC fuse rating
50 A
EPS fuse rating
60 A
MAIN fuse rating
200 A
STARTER fuse rating
250 A
Multiplex slow blow fuse
CABIN+B fuse rating
50 A
ABS/DSCM fuse rating
50 A
ENG.MAIN fuse rating
40 A
HEATER fuse rating
40 A
DEFOG fuse rating
40 A
INJECTOR fuse rating
30 A
ADD FAN GE fuse rating
30 A
FAN GE fuse rating
30 A
Accessory socket
Rated voltage
DC 12 V
Rated load
10 A

SKYACTIV-D 1.5, SYKACTIV-D 2.2

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Main fuse
GLOW fuse rating
80 A
EPS fuse rating
60 A
PTC fuse rating
100 A
MAIN fuse rating
200 A
STARTER fuse rating
450 A
Multiplex slow blow fuse
CABIN+B fuse rating
50 A
ABS/DSCM fuse rating
50 A
ENG.MAIN fuse rating
40 A
HEATER fuse rating
40 A
DEFOG fuse rating
40 A
INJECTOR fuse rating
30 A
ADD FAN GE fuse rating
30 A
FAN GE fuse rating
30 A
Accessory socket
Rated voltage
DC 12 V
Rated load
10 A


Specification (witu i-ELOOP)

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Main fuse
GLOW fuse rating*2
80 A
EPS fuse rating
60 A
PTC fuse rating *2
100 A
MAIN fuse rating
200 A
STARTER fuse rating
•  200 A*1
•  250 A*2
Multiplex slow blow fuse
CABIN+B fuse rating
50 A
ABS/DSCM fuse rating
50 A
ENG.MAIN fuse rating
40 A
HEATER fuse rating
40 A
DEFOG fuse rating
40 A
INJECTOR fuse rating
30 A
ADD FAN GE fuse rating
30 A
FAN GE fuse rating
30 A
Accessory socket
Rated voltage
DC 12 V
Rated load
10 A

*1  :SKYACTIV-G 1.5, SKYACTIV-G 2.0
*2  :SKYACTIV-D 2.2

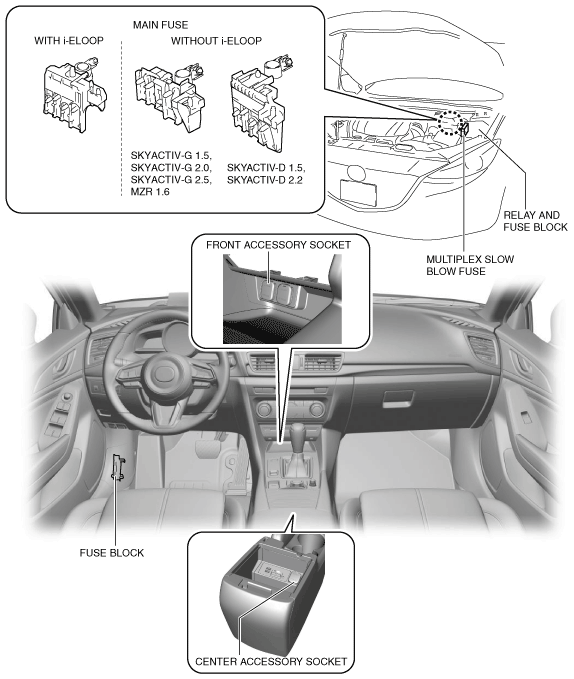

Structural view

am3zzn00006017
