RELAY AND FUSE BLOCK


id092100960100


Purpose

•  Relays and fuses used by each system are grouped and housed together for smooth inspection and replacement servicing.

Function

•  Relays and fuses used by each system are grouped and housed together.

Construction

•  Installed in the engine compartment.

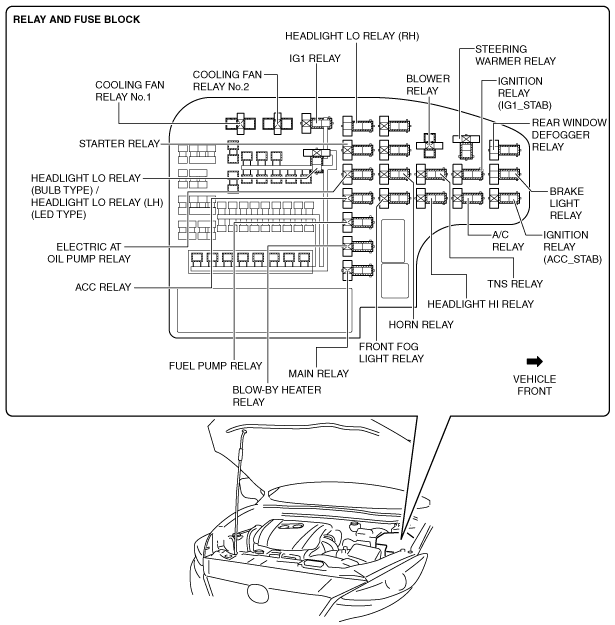

SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5, MZR 1.6

am3zzn00006018

SKYACTIV-D 1.5, SKYACTIV-D 2.2

am3zzn00006019

Operation


Relay operation

1.  When electric current flows to the coil, electromagnetic power is generated.

2.  The switch is attracted by the generated electromagnetic power and switches on.

ac5wzn00000289


Fuse operation

1.  If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.

2.  Current between the fuse and ground is interrupted.


Fail-safe

•  Function not equipped.
