INSTRUMENT CLUSTER INSPECTION
id092200010600
Speedometer Inspection (Analog Speedometer Type)
Using a speedometer tester
1. Adjust the tire pressure to the specification. (See WHEEL AND TIRE SPECIFICATION.)
2. Using a speedometer tester, verify that the values are as indicated in the table.
240 km/h speedometer type
|
Speedometer indication (km/h) |
Speedometer tester indication (km/h) |
|---|---|
|
20
|
20.40—25.49
|
|
40
|
40.80—45.69
|
|
60
|
61.20—66.29
|
|
80
|
81.60—86.89
|
|
100
|
102.00—107.96
|
|
120
|
122.40—129.26
|
|
140
|
142.80—150.36
|
|
160
|
163.20—170.76
|
|
180
|
183.60—191.16
|
|
200
|
204.00—211.73
|
|
220
|
224.40—232.84
|
|
240
|
244.80—253.24
|
U.K. specs.
|
Speedometer indication (mph) |
Speedometer tester indication (mph) |
|---|---|
|
10
|
10.20—13.31
|
|
20
|
20.40—23.41
|
|
30
|
30.60—33.71
|
|
40
|
40.80—44.01
|
|
50
|
51.00—54.39
|
|
60
|
61.20—64.99
|
|
70
|
71.40—75.66
|
|
80
|
81.60—86.25
|
|
90
|
91.80—96.45
|
|
100
|
102.00—106.65
|
|
110
|
112.20—116.85
|
|
120
|
122.40—127.22
|
|
130
|
132.60—137.80
|
|
140
|
142.80—148.00
|
|
150
|
153.00—158.20
|
160 km/h speedometer type
|
Speedometer indication (km/h) |
Speedometer tester indication (km/h) |
|---|---|
|
20
|
20.40—23.98
|
|
40
|
40.80—44.18
|
|
60
|
61.20—64.78
|
|
80
|
81.60—85.66
|
|
100
|
102.00—106.97
|
|
120
|
122.40—127.63
|
|
140
|
142.80—148.03
|
|
160
|
163.20—168.92
|
Using the M-MDS
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function SPEEDOMTR, verify that the values are as indicated in the table.
240 km/h speedometer type.
|
M-MDS display |
Speedometer display |
|---|---|
|
60 km/h
|
Speedometer needle moves to approx. 53—59 km/h {33—36 mph}.
|
|
120 km/h
|
Speedometer needle moves to approx. 110—118 km/h {68.4—73.3 mph}.
|
|
Off
|
Speedometer needle moves to the bottommost position.
|
160 km/h speedometer type.
|
M-MDS display |
Speedometer display |
|---|---|
|
60 km/h
|
Speedometer needle moves to approx. 55—59 km/h {35—36 mph}.
|
|
120 km/h
|
Speedometer needle moves to approx. 112—118 km/h {69.6—73.3 mph}.
|
|
Off
|
Speedometer needle moves to the bottommost position.
|
Speedometer Inspection (Digital Speedometer Type)
Using a speedometer tester
1. Adjust the tire pressure to the specification. (See WHEEL AND TIRE SPECIFICATION.)
2. Using a speedometer tester, verify that the values are as indicated in the table.
European (L.H.D. U.K.), General (R.H.D.), General (L.H.D.), Australian specs.
|
Speedometer indication (km/h) |
Speedometer tester indication (km/h) |
|---|---|
|
20
|
20—23
|
|
40
|
40—43
|
|
60
|
61—64
|
|
80
|
81—84
|
|
100
|
102—104
|
|
120
|
122—125
|
|
140
|
142—145
|
|
160
|
163—166
|
|
180
|
183—186
|
|
200
|
204—206
|
|
220
|
224—227
|
|
240
|
244—247
|
U.K. specs.
|
Speedometer indication (mph) |
Speedometer tester indication (mph) |
|---|---|
|
10
|
10—13
|
|
20
|
20—23
|
|
30
|
30—33
|
|
40
|
40—43
|
|
50
|
51—53
|
|
60
|
61—64
|
|
70
|
71—74
|
|
80
|
81—84
|
|
90
|
91—94
|
|
100
|
102—104
|
|
110
|
112—115
|
|
120
|
122—125
|
|
130
|
132—135
|
|
140
|
142—145
|
|
150
|
153—155
|
|
160
|
163—166
|
Tachometer Inspection (Analog Tachometer type)
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function TACHOMTR, verify that the values are as indicated in the table.
|
M-MDS display |
Tachometer display |
|---|---|
|
3000 RPM
|
Tachometer needle moves to approx. 3,050 rpm.
|
|
6000 RPM
|
Tachometer needle moves to approx. 6,100 rpm.
|
|
Off
|
Tachometer needle moves to bottommost position.
|

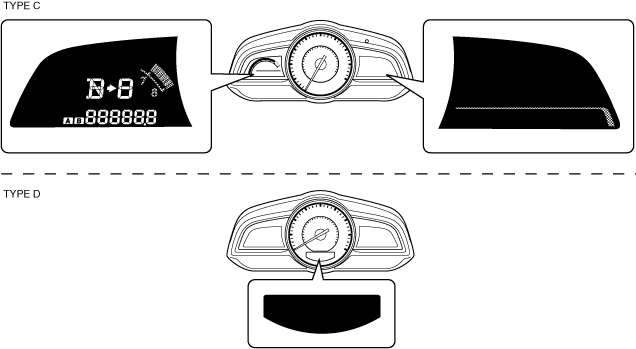

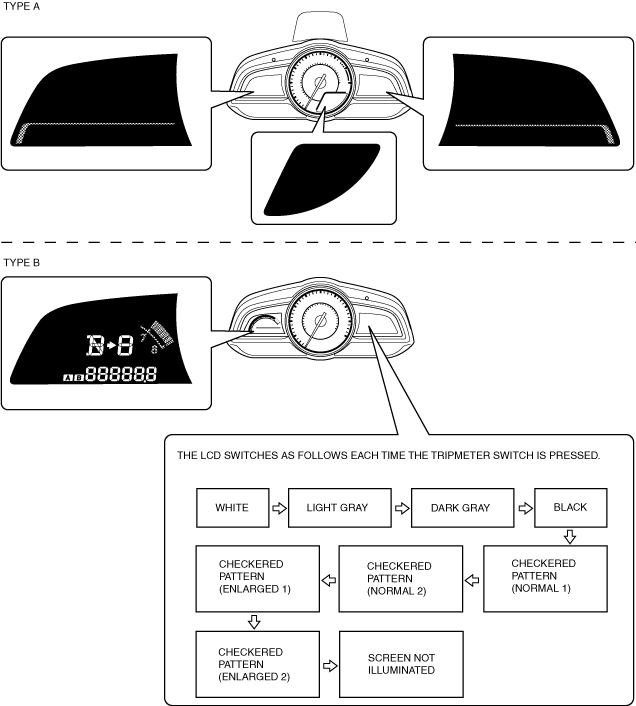

LCD Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function LCD_SEG, verify that the LCD is illuminated.
am3zzw00017767
|
am3zzw00017768
|
Warning/Indicator Light Illumination Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function WL+IL, verify that the warning/indicator lights in the following table are illuminated.

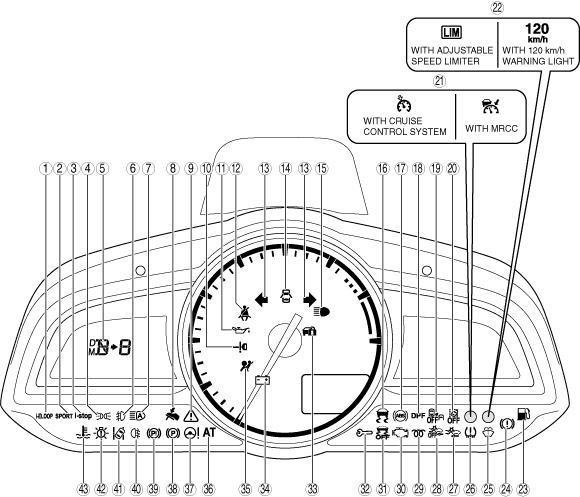

TYPE A (Digital speedometer type)
am3zzn00005773
|
|
No. |
Warning/Indicator lights |
Name |
Messages in center display are displayed when indicator/warning light is turned on or flashed |
Comment |
Warning/indicator lights which illuminate during initial check |
|---|---|---|---|---|---|
|
1
|
 |
i-ELOOP indicator light
|
×
|
With i-ELOOP
|
—
|
|
2
|
 |
Select mode indicator light
|
—
|
SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5
|
—
|
|
3
|
 |
i-stop warning light (amber)/i-stop indicator light (green)
|
×
|
With i-stop system
|
×
|
|
4
|
 |
Lights-on indicator light
|
—
|
—
|
—
|
|
5
|
 |
Shift position indicator light/gear position indicator
|
—
|
ATX
|
—
|
 |
Gear shift indicator
|
—
|
MTX
|
—
|
|
|
6
|
 |
Front fog light indicator light
|
×
|
With front fog light
|
×
|
|
7
|
 |
Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)
|
×
|
With adaptive LED headlights
|
×
|
|
8
|
 |
Brake pedal operation demand indicator light
|
—
|
With electric parking brake
|
×
|
|
9
|
 |
Master warning light
|
×
|
—
|
×
|
|
10
|
 |
KEY warning light (red)/KEY indicator light (green)
|
×
|
—
|
—
|
|
11
|
 |
Engine oil warning light
|
×
|
—
|
×
|
|
12
|
 |
Seat belt warning light
|
—
|
—
|
—
|
|
13
|
 |
Turn signal/hazard warning indicator lights
|
—
|
—
|
—
|
|
14
|
 |
Door-ajar warning light
|
—
|
—
|
—
|
|
15
|
 |
Headlight high-beam indicator light
|
—
|
—
|
—
|
|
16
|
 |
TCS/DSC indicator light
|
×
|
—
|
×
|
|
17
|
 |
ABS warning light
|
×
|
—
|
×
|
|
18
|
 |
Diesel particulate filter indicator light
|
×
|
SKYACTIV-D 1.5, SKYACTIV-D 2.2
|
×
|
|
19
|
 |
BSM OFF indicator light
|
×
|
With BSM
|
×
|
|
20
|
 |
LDWS OFF indicator light
|
—
|
With LDWS
|
×
|
|
21
|
 |
Cruise main indicator light (amber)/cruise set indicator light (green)
|
—
|
With cruise control system
|
—
|
 |
Mazda Radar Cruise Control (MRCC) warning light (amber)/Mazda Radar Cruise Control (MRCC) indicatorlight (green)
|
×
|
With MRCC
|
×
|
|
|
22
|
 |
Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)
|
—
|
With adjustable speed limiter
|
—
|
 |
120 km/h warning light
|
—
|
With 120 km/h warning light
|
×
|
|
|
23
|
 |
Low fuel warning light
|
×
|
—
|
—
|
|
24
|
 |
Brake system warning light
|
×
|
—
|
×
|
|
25
|
 |
Low washer fluid level warning light
|
×
|
With washer fluid-level sensor
|
—
|
|
26
|
 |
Tire pressure monitoring system warning light
|
×
|
With TPMS
|
×
|
|
27
|
 |
• Smart brake support/smart city brake support (SBS/SCBS) indicator light (red)
• Smart brake support/smart city brake support (SBS/SCBS) warning light (amber)
|
×
|
With SBS/SCBS
|
×
|
|
28
|
 |
Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light
|
—
|
With SBS/SCBS
|
×
|
|
29
|
 |
Glow indicator light
|
×
|
SKYACTIV-D 1.5, SKYACTIV-D 2.2
|
×
|
|
30
|
 |
Check engine light
|
×
|
—
|
×
|
|
31
|
 |
DSC OFF indicator light
|
—
|
—
|
×
|
|
32
|
 |
Wrench indicator light
|
×
|
—
|
×
|
|
33
|
 |
Security indicator light
|
—
|
—
|
×
|
|
34
|
 |
Charging system warning light
|
×
|
—
|
×
|
|
35
|
 |
Air bag/front seat belt pretensioner system warning light
|
×
|
—
|
×
|
|
36
|
 |
Automatic transaxle warning light
|
×
|
ATX
|
×
|
|
37
|
 |
Power steering malfunction indicator light
|
×
|
—
|
×
|
|
38
|
 |
Electric parking brake indicator light
|
×
|
With electric parking brake
|
×
|
|
39
|
 |
Electric parking brake warning light
|
×
|
With electric parking brake
|
×
|
|
40
|
 |
Rear fog light indicator light
|
—
|
With rear fog light
|
—
|
|
41
|
 |
Lane departure warning system (LDWS) warning light (amber)/lane departure warning system (LDWS) indicator light (green)
|
×
|
With LDWS
|
×
|
|
42
|
 |
LED headlight warning light
|
×
|
With front combination light (LED type)
|
×
|
|
43
|
 |
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
|
×
|
—
|
×
|

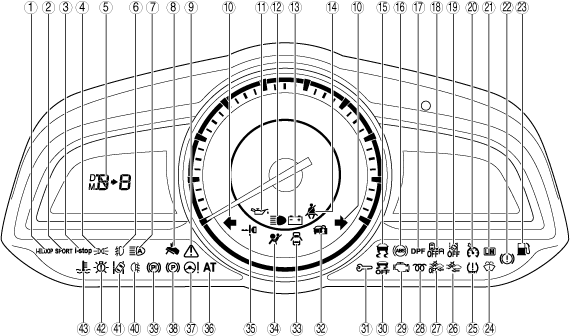

TYPE B (Analog speedometer type (with tachometer and multi-information display))
am3zzn00005774
|
|
No. |
Warning/Indicator lights |
Name |
Messages in center display are displayed when indicator/warning light is turned on or flashed |
Comment |
Warning/indicator lights which illuminate during initial check |
|---|---|---|---|---|---|
|
1
|
|
i-ELOOP indicator light
|
×
|
With i-ELOOP
|
—
|
|
2
|
|
Select mode indicator light
|
—
|
SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5
|
—
|
|
3
|
|
i-stop warning light (amber)/i-stop indicator light (green)
|
×
|
With i-stop system
|
×
|
|
4
|
|
Lights-on indicator light
|
—
|
—
|
—
|
|
5
|
|
Shift position indicator light/gear position indicator
|
—
|
ATX
|
—
|
|
Gear shift indicator
|
—
|
MTX
|
—
|
|
|
6
|
|
Front fog light indicator light
|
×
|
With front fog light
|
×
|
|
7
|
|
Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)
|
×
|
With adaptive LED headlights
|
×
|
|
8
|
|
Brake pedal operation demand indicator light
|
—
|
With electric parking brake
|
×
|
|
9
|
|
Master warning light
|
×
|
—
|
×
|
|
10
|
|
Turn signal/hazard warning indicator lights
|
—
|
—
|
—
|
|
11
|
|
Engine oil warning light
|
×
|
—
|
×
|
|
12
|
|
Headlight high-beam indicator light
|
—
|
—
|
—
|
|
13
|
|
Charging system warning light
|
×
|
—
|
×
|
|
14
|
|
Seat belt warning light
|
—
|
—
|
—
|
|
15
|
|
TCS/DSC indicator light
|
×
|
—
|
×
|
|
16
|
|
ABS warning light
|
×
|
—
|
×
|
|
17
|
|
Diesel particulate filter indicator light
|
×
|
SKYACTIV-D 1.5, SKYACTIV-D 2.2
|
×
|
|
18
|
|
BSM OFF indicator light
|
×
|
With BSM
|
×
|
|
19
|
|
LDWS OFF indicator light
|
—
|
With LDWS
|
×
|
|
20
|
|
Cruise main indicator light (amber)/cruise set indicator light (green)
|
—
|
With cruise control system
|
—
|
|
21
|
|
Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)
|
—
|
With adjustable speed limiter
|
—
|
|
22
|
|
Brake system warning light
|
×
|
—
|
×
|
|
23
|
|
Low fuel warning light
|
×
|
—
|
—
|
|
24
|
|
Low washer fluid level warning light
|
×
|
With washer fluid-level sensor
|
—
|
|
25
|
|
Tire pressure monitoring system warning light
|
×
|
With TPMS
|
×
|
|
26
|
|
• Smart brake support/smart city brake support (SBS/SCBS) indicator light (red)
• Smart brake support/smart city brake support (SBS/SCBS) warning light (amber)
|
×
|
With SBS/SCBS
|
×
|
|
27
|
|
Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light
|
—
|
With SBS/SCBS
|
×
|
|
28
|
|
Glow indicator light
|
×
|
SKYACTIV-D 1.5, SKYACTIV-D 2.2
|
×
|
|
29
|
|
Check engine light
|
×
|
—
|
×
|
|
30
|
|
DSC OFF indicator light
|
—
|
—
|
×
|
|
31
|
|
Wrench indicator light
|
×
|
—
|
×
|
|
32
|
|
Security indicator light
|
—
|
—
|
×
|
|
33
|
|
Door-ajar warning light
|
—
|
—
|
—
|
|
34
|
|
Air bag/front seat belt pretensioner system warning light
|
×
|
—
|
×
|
|
35
|
|
KEY warning light (red)/KEY indicator light (green)
|
×
|
—
|
—
|
|
36
|
|
Automatic transaxle warning light
|
×
|
ATX
|
×
|
|
37
|
|
Power steering malfunction indicator light
|
×
|
—
|
×
|
|
38
|
|
Electric parking brake indicator light
|
×
|
With electric parking brake
|
×
|
|
39
|
|
Electric parking brake warning light
|
×
|
With electric parking brake
|
×
|
|
40
|
|
Rear fog light indicator light
|
—
|
With rear fog light
|
—
|
|
41
|
|
Lane departure warning system (LDWS) warning light (amber)/lane departure warning system (LDWS) indicator light (green)
|
×
|
With LDWS
|
×
|
|
42
|
|
LED headlight warning light
|
×
|
With front combination light (LED type)
|
×
|
|
43
|
|
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
|
×
|
—
|
×
|

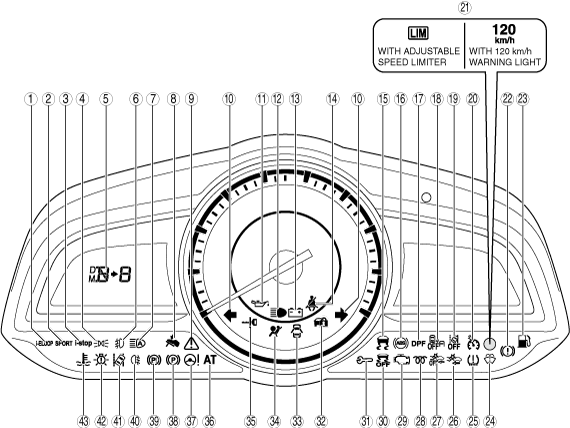

TYPE C (Analog speedometer type (with tachometer, without multi-information display))
am3zzn00006242
|
|
No. |
Warning/Indicator lights |
Name |
Messages in center display are displayed when indicator/warning light is turned on or flashed |
Comment |
Warning/indicator lights which illuminate during initial check |
|---|---|---|---|---|---|
|
1
|
|
i-ELOOP indicator light
|
×
|
With i-ELOOP
|
—
|
|
2
|
|
Select mode indicator light
|
—
|
SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5
|
—
|
|
3
|
|
i-stop warning light (amber)/i-stop indicator light (green)
|
×
|
With i-stop system
|
×
|
|
4
|
|
Lights-on indicator light
|
—
|
—
|
—
|
|
5
|
|
Shift position indicator light/gear position indicator
|
—
|
ATX
|
—
|
|
Gear shift indicator
|
—
|
MTX
|
—
|
|
|
6
|
|
Front fog light indicator light
|
×
|
With front fog light
|
×
|
|
7
|
|
Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)
|
×
|
With adaptive LED headlights
|
×
|
|
8
|
|
Brake pedal operation demand indicator light
|
—
|
With electric parking brake
|
×
|
|
9
|
|
Master warning light
|
×
|
—
|
×
|
|
10
|
|
Turn signal/hazard warning indicator lights
|
—
|
—
|
—
|
|
11
|
|
Engine oil warning light
|
×
|
—
|
×
|
|
12
|
|
Headlight high-beam indicator light
|
—
|
—
|
—
|
|
13
|
|
Charging system warning light
|
×
|
—
|
×
|
|
14
|
|
Seat belt warning light
|
—
|
—
|
—
|
|
15
|
|
TCS/DSC indicator light
|
×
|
—
|
×
|
|
16
|
|
ABS warning light
|
×
|
—
|
×
|
|
17
|
|
Diesel particulate filter indicator light
|
×
|
SKYACTIV-D 1.5, SKYACTIV-D 2.2
|
×
|
|
18
|
|
BSM OFF indicator light
|
×
|
With BSM
|
×
|
|
19
|
|
LDWS OFF indicator light
|
—
|
With LDWS
|
×
|
|
20
|
|
Cruise main indicator light (amber)/cruise set indicator light (green)
|
—
|
With cruise control system
|
—
|
|
21
|
|
Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)
|
—
|
With adjustable speed limiter
|
—
|
|
120 km/h warning light
|
—
|
With 120 km/h warning light
|
×
|
|
|
22
|
|
Brake system warning light
|
×
|
—
|
×
|
|
23
|
|
Low fuel warning light
|
×
|
—
|
—
|
|
24
|
|
Low washer fluid level warning light
|
×
|
With washer fluid-level sensor
|
—
|
|
25
|
|
Tire pressure monitoring system warning light
|
×
|
With TPMS
|
×
|
|
26
|
|
• Smart brake support/smart city brake support (SBS/SCBS) indicator light (red)
• Smart brake support/smart city brake support (SBS/SCBS) warning light (amber)
|
×
|
With SBS/SCBS
|
×
|
|
27
|
|
Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light
|
—
|
With SBS/SCBS
|
×
|
|
28
|
|
Glow indicator light
|
×
|
SKYACTIV-D 1.5, SKYACTIV-D 2.2
|
×
|
|
29
|
|
Check engine light
|
×
|
—
|
×
|
|
30
|
|
DSC OFF indicator light
|
—
|
—
|
×
|
|
31
|
|
Wrench indicator light
|
×
|
—
|
×
|
|
32
|
|
Security indicator light
|
—
|
—
|
×
|
|
33
|
|
Door-ajar warning light
|
—
|
—
|
—
|
|
34
|
|
Air bag/front seat belt pretensioner system warning light
|
×
|
—
|
×
|
|
35
|
|
KEY warning light (red)/KEY indicator light (green)
|
×
|
—
|
—
|
|
36
|
|
Automatic transaxle warning light
|
×
|
ATX
|
×
|
|
37
|
|
Power steering malfunction indicator light
|
×
|
—
|
×
|
|
38
|
|
Electric parking brake indicator light
|
×
|
With electric parking brake
|
×
|
|
39
|
|
Electric parking brake warning light
|
×
|
With electric parking brake
|
×
|
|
40
|
|
Rear fog light indicator light
|
—
|
With rear fog light
|
—
|
|
41
|
|
Lane departure warning system (LDWS) warning light (amber)/lane departure warning system (LDWS) indicator light (green)
|
×
|
With LDWS
|
×
|
|
42
|
|
LED headlight warning light
|
×
|
With front combination light (LED type)
|
×
|
|
43
|
|
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
|
×
|
—
|
×
|

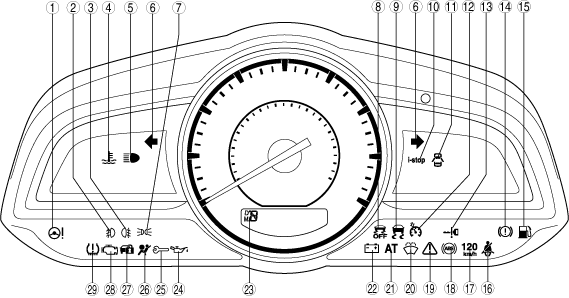

TYPE D (Analog speedometer type (without tachometer))
am3zzn00005775
|
|
No. |
Warning/Indicator lights |
Name |
Comment |
Warning/indicator lights which illuminate during initial check |
|---|---|---|---|---|
|
1
|
|
Power steering malfunction indicator light
|
—
|
×
|
|
2
|
|
Front fog light indicator light
|
With front fog light
|
×
|
|
3
|
|
Rear fog light indicator light
|
With rear fog light
|
—
|
|
4
|
|
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
|
—
|
×
|
|
5
|
|
Headlight high-beam indicator light
|
—
|
—
|
|
6
|
|
Turn signal/hazard warning indicator lights
|
—
|
—
|
|
7
|
|
Lights-on indicator light
|
—
|
—
|
|
8
|
|
DSC OFF indicator light
|
—
|
×
|
|
9
|
|
TCS/DSC indicator light
|
—
|
×
|
|
10
|
|
i-stop warning light (amber)/i-stop indicator light (green)
|
With i-stop system
|
×
|
|
11
|
|
Door-ajar warning light
|
—
|
—
|
|
12
|
|
Cruise main indicator light (amber)/cruise set indicator light (green)
|
With cruise control system
|
—
|
|
13
|
|
KEY warning light (red)/KEY indicator light (green)
|
—
|
—
|
|
14
|
|
Brake system warning light
|
—
|
×
|
|
15
|
|
Low fuel warning light
|
—
|
—
|
|
16
|
|
Seat belt warning light
|
—
|
—
|
|
17
|
|
120 km/h warning light
|
With 120 km/h warning light
|
×
|
|
18
|
|
ABS warning light
|
—
|
×
|
|
19
|
|
Master warning light
|
—
|
×
|
|
20
|
|
Low washer fluid level warning light
|
With washer fluid-level sensor
|
—
|
|
21
|
|
Automatic transaxle warning light
|
ATX
|
×
|
|
22
|
|
Charging system warning light
|
—
|
×
|
|
23
|
 |
Shift position indicator light/gear position indicator
|
ATX
|
—
|
|
24
|
|
Engine oil warning light
|
—
|
×
|
|
25
|
|
Wrench indicator light
|
—
|
×
|
|
26
|
|
Air bag/front seat belt pretensioner system warning light
|
—
|
×
|
|
27
|
|
Security indicator light
|
—
|
×
|
|
28
|
|
Check engine light
|
—
|
×
|
|
29
|
|
Tire pressure monitoring system warning light
|
With TPMS
|
×
|
Alarm Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function ALARM, verify that the buzzer sounds.
