PARKING SENSOR SYSTEM

id092200024200

Outline

• The parking sensor system detects obstructions in the blind spot (vehicle front^*1/front corners^*1/rear/rear corners) to a wide extent using ultrasonic sensors and notifies the driver of the obstructions using the indicator and buzzer.

Warning

• The parking sensor is a device to assist the driver in confirming safety. It is not a substitute for the driver and cannot guarantee 100% safety. Do not rely completely on the parking sensor and drive while confirming the safety of the surrounding area visually.

• The following circumstances may obstruct the ultrasonic sensor resulting in an accident:

― Ice, snow, or dirt is adhering to the ultrasonic sensor.

― The ultrasonic sensor is covered by foreign material (such as bumper stickers).

― A shock is applied to the bumper in an accident and the ultrasonic sensor installation angle is deviated.

― The ultrasonic sensor is exposed to heavy rain or water-spray from the road.

― There is another device emitting ultrasonic waves (such as a parking assist system of another vehicle) near the ultrasonic sensor.

• The parking sensor may not operate correctly under the following conditions:

― Ice, snow, or dirt is adhering to the ultrasonic sensor surface.

― The ultrasonic sensor is frozen.

― The vehicle is in a tilted position.

― The vehicle is parked on a steep incline or there is a difference in height between lines.

― Obstructions have approached too close to the sensor.

• The parking sensor may not detect the following items:

― Thin objects such as wire or rope

― Items which absorb ultrasonic waves easily, such as cotton or snow

― Angular-shaped objects

― Tall objects with protruding at the top

― Short objects

― Objects located immediately below the bumper, such as wheel stoppers

• The warning alert may activate while driving near parked vehicles/guardrails/walls on a narrow road, or while driving on a slope, gravel road, or grass field. This is a normal effect caused by the system's response to ultrasonic waves, and does not indicate a malfunction.

*1 :with front ultrasonic sensor

Function

• The ultrasonic sensor assembled to the bumper detects an obstruction and the parking assist unit notifies the driver of the area and the distance between the vehicle and the obstruction using the parking sensor buzzer, parking sensor indicator, and parking sensor screen (with center display only).

Volume adjustment function

• The volume of the parking sensor buzzer can be adjusted. Refer to the Workshop Manual for the adjustment procedure.

Parking sensor system activation switching function (With front ultrasonic sensor)

• The parking sensor system can be switched between automatic/manual. Refer to the workshop manual for the switching procedure.

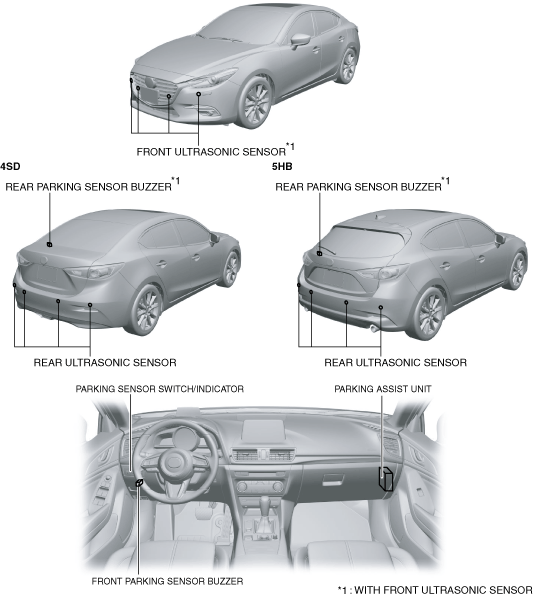

Structural view

am3zzn00006488

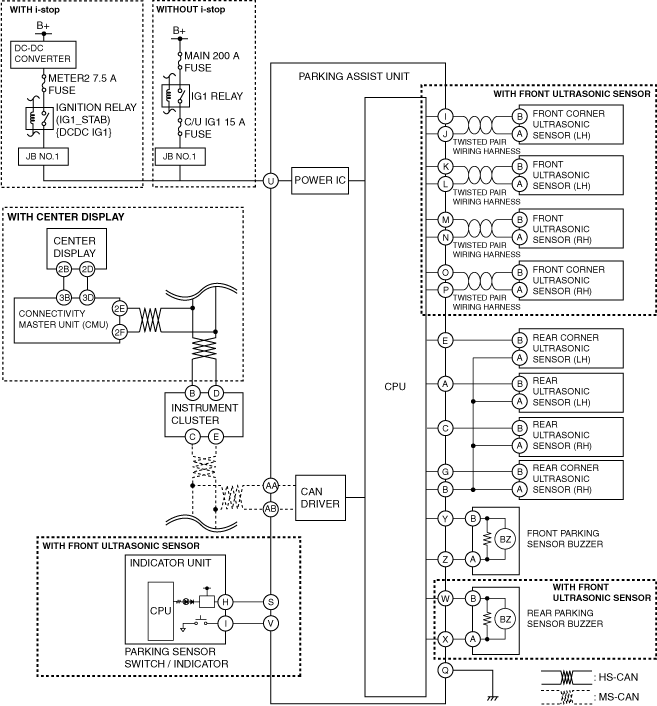

System wiring diagram

• Twisted pair wiring harnesses are used between the front ultrasonic sensors and the parking assist unit because many of the electrical components on the front ultrasonic sensor may be affected by noise.

am3zzn00006489

Operation

Operation condition

• If any one of the following conditions is met, the parking sensor system operates.

― Parking sensor switch turned on (system on) with ignition switched ON (engine on) and vehicle speed of less than 10 km/h {6.2 mph}

― Selector lever shifted to position other than R position (ATX)/reverse gear (MTX) with ignition switched ON (engine on) and vehicle speed of less than 10 km/h {6.2 mph} (With front ultrasonic sensor) (When parking sensor system activation is only set to automatic)

― Selector lever shifted to R position (ATX)/reverse gear (MTX) with ignition switched ON (engine on) and vehicle speed of less than 10 km/h {6.2 mph} (When parking sensor system activation is only set to automatic)

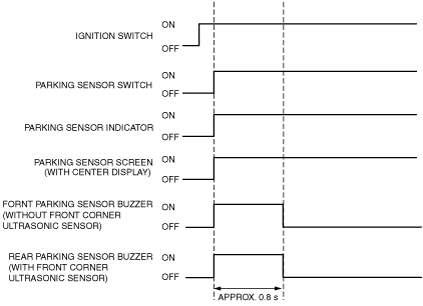

• If the operation condition is met, the rear parking sensor buzzer (with front ultrasonic sensor)/front parking sensor buzzer (without front ultrasonic sensor) sounds for approx. 0.8 s and the parking sensor indicator illuminates. In addition, the parking sensor screen is displayed on the center display screen (with center display).

am3zzn00004071

• If the system activates, the ultrasonic sensor starts to detect obstructions. For the ultrasonic sensor which is operating, refer to the following table.

×: Indicator illumination/flashing —: Not operating

Vehicle condition		Parking sensor indicator	Ultrasonic sensor
Shift lever	Vehicle speed		Front ^*2		Rear
Shift lever	Vehicle speed		Corner	Center	Corner	Center
Except R position (ATX)/reverse gear (MTX)	Less than approx. 10 km/h {6.2 mph}	On	×	×	―	―
Except R position (ATX)/reverse gear (MTX)	Approx. 10 km/h {6.2 mph} or more	Off	―	―	―	―
R position (ATX)/reverse gear (MTX)	Less than approx. 10 km/h {6.2 mph}	On	×	―	×	×
R position (ATX)/reverse gear (MTX)	Approx. 10 km/h {6.2 mph} or more	On	―	―	―	×

*2 :with front ultrasonic sensor

Note

• If a towbar is installed or a trailer is hitched to the vehicle, the parking sensor system may not operate normally.

Obstruction Detection Area

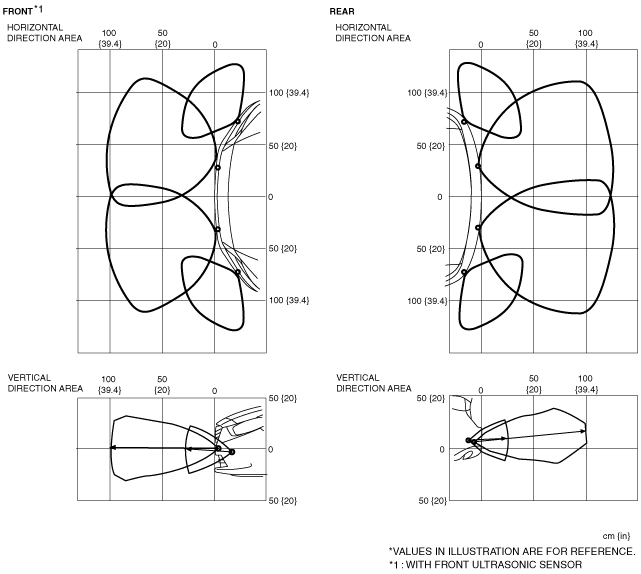

• Each ultrasonic sensor detects obstructions in the following areas.

am3zzn00004072

Illumination/flashing of parking sensor indicator, buzzer sound pattern

Obstructions detected

• Change in the illumination/flashing of the parking sensor indicator and the amount of time the buzzer sounds are as follows:

• The parking sensor indicator and buzzer are non-synchronized.

Ultrasonic sensor

Zone

Distance from obstruction

Parking sensor buzzer sound pattern

Front^*3/rear corner sensor

Short distance

Approx. 0—25 cm {9.8 in}

Intermediate distance

Approx. 25—38 cm {9.9—14.0 in}

Long distance

Approx. 38—55 cm {15—21 in}

Front sensor^*3

Short distance

Approx. 0—40 cm {15 in}

Intermediate distance

Approx. 40—50 cm {16—19 in}

Long distance

Approx. 50—65 cm {20—25 in}

Maximum long distance

Approx. 65—110 cm {26—43.3 in}

Rear sensor

Short distance

Approx. 0—35 cm {13 in}

Intermediate distance

Approx. 35—45 cm {14—17 in}

Long distance

Approx. 45—60 cm {18—23 in}

Maximum long distance

Approx. 60—150 cm {24.0—59.0 in}

Ultrasonic sensor malfunction is detected

• If the parking assist unit detects that there is a malfunction in the ultrasonic sensor circuit, it sounds the buzzer in the following pattern and flashes the parking sensor indicator.

Note

• If there is a malfunction in the front ultrasonic sensor circuit, the front parking sensor buzzer sounds.^*3

• If there is a malfunction in the rear ultrasonic sensor circuit, the rear parking sensor buzzer sounds.

ac5jjn00001518

• The parking assist unit displays the following on the center display screen (with center display only) if a malfunction in the system is detected.

Condition

LCD

Parking sensor screen

Rear view monitor screen

Disconnection of ultrasonic sensor detected.

System malfunction detected

Ultrasonic sensor dirty is detected

*3 :with front ultrasonic sensor

Ultrasonic sensor	Zone	Distance from obstruction	Parking sensor buzzer sound pattern
Front^*3/rear corner sensor	Short distance	Approx. 0—25 cm {9.8 in}
	Intermediate distance	Approx. 25—38 cm {9.9—14.0 in}
	Long distance	Approx. 38—55 cm {15—21 in}
Front sensor^*3	Short distance	Approx. 0—40 cm {15 in}
	Intermediate distance	Approx. 40—50 cm {16—19 in}
	Long distance	Approx. 50—65 cm {20—25 in}
	Maximum long distance	Approx. 65—110 cm {26—43.3 in}
Rear sensor	Short distance	Approx. 0—35 cm {13 in}
	Intermediate distance	Approx. 35—45 cm {14—17 in}
	Long distance	Approx. 45—60 cm {18—23 in}
	Maximum long distance	Approx. 60—150 cm {24.0—59.0 in}

Condition	LCD
Condition	Parking sensor screen	Rear view monitor screen
Disconnection of ultrasonic sensor detected.
System malfunction detected
Ultrasonic sensor dirty is detected
