•  The speedometer notifies the driver of the speed at which the vehicle is traveling.

•  The instrument cluster displays the current vehicle speed based on the vehicle speed signal from the PCM.

•  The instrument cluster controls the speedometer needle based on the vehicle speed signal from the PCM and displays the current vehicle speed.

•  A digital display speedometer has been adopted.

•  The current vehicle speed is displayed in the speedometer display and the active driving display.

am3zzn00006428

•  An analog needle display speedometer with a stepping motor mechanism has been adopted.

am3zzn00006429

•  The instrument cluster receives (1) the vehicle speed signal from the PCM when the ignition is switched ON (engine on).

•  The instrument cluster displays (2) the current vehicle speed based on the vehicle speed signal.

am3uun00002624

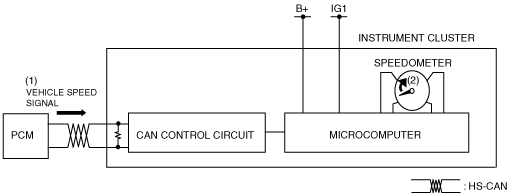

•  The instrument cluster receives (1) the vehicle speed signal from the PCM when the ignition is switched ON (engine on).

•  The instrument cluster moves the needle based on the vehicle speed signal and displays (2) the current vehicle speed.

ac5wzn00000882

•  Function not equipped.
