MAZDA ERA-GLONASS OPERATION RECORD

id092200045200

Purpose

• The Mazda ERA-GLONASS operation record stores the recorded causes for operating the Mazda ERA-GLONASS.

Functions

• The operation record is stored by the Mazda ERA-GLONASS control module and displayed using the Mazda Modular Diagnostic System (M-MDS).

• The Mazda ERA-GLONASS control module stores the following when the Mazda ERA-GLONASS operates.

― Cause of Mazda ERA-GLONASS to start operating

― Cause of Mazda ERA-GLONASS to stop operating

― Data transmission status

― Voice call status

― Audio speaker mute function status

Structure/Construction

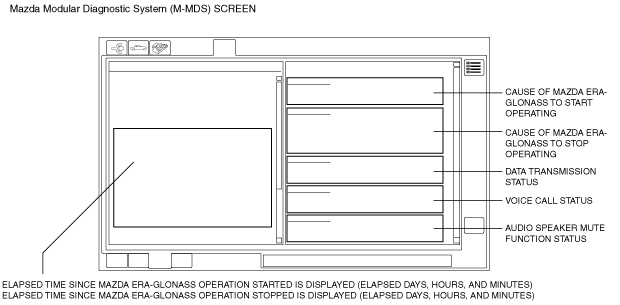

• Based on the stored record, the Mazda ERA-GLONASS control module displays the following operation record on the M-MDS screen.

am6zzn00005163

Operation

• The Mazda ERA-GLONASS control module stores the operation record at the same time when the operation is started.

Fail-safe

• Not applicable
