ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION

id092200103700

Caution
•  Do not open/close the combiner manually. Otherwise, the combiner could be damaged or it may cause a malfunction.

Replacing Active Driving Display as Single Component

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
(2)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
(3)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

3.  Remove the screws.

am3uuw00012378

4.  Disconnect the connector.

am3zzw00018398

5.  Remove the active driving display.

6.  Install in the reverse order of removal.


Replacing Combiner

1.  Refer to ACTIVE DRIVING DISPLAY INSPECTION and stop the combiner at an angle of 10 degrees. (See ACTIVE DRIVING DISPLAY INSPECTION.)

2.  Switch the ignition off.

3.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

4.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
(2)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
(3)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

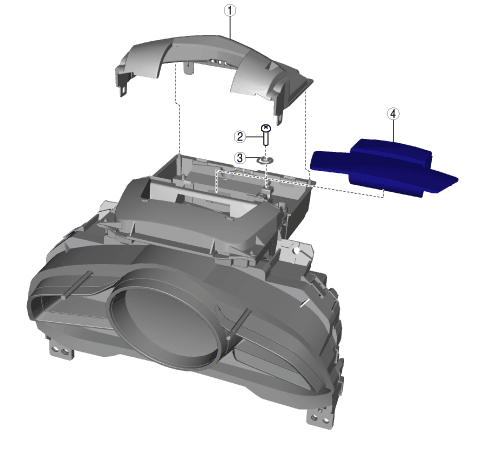

5.  Remove the combiner in the following order:

am3uuw00011939

1
Cover
2
Screw
3
Spring
4
Combiner (See Combiner assembly note.)

6.  Install in the reverse order of removal.


Combiner assembly note

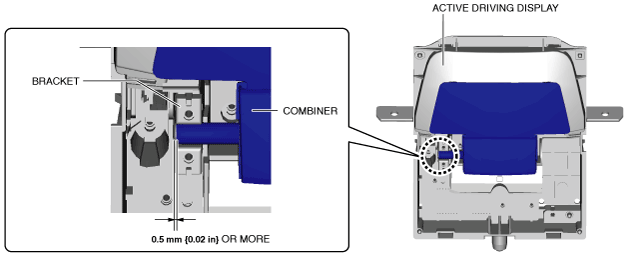

•  For the combiner assembly, verify that the combiner shaft is within 0.5 mm {0.02 in} or more from the end surface of the bracket.
am3zzw00014662
