MAZDA ERA-GLONASS SPEAKER REMOVAL/INSTALLATION

id092200666100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the center speaker grill.(See SPEAKER GRILLE REMOVAL/INSTALLATION.)

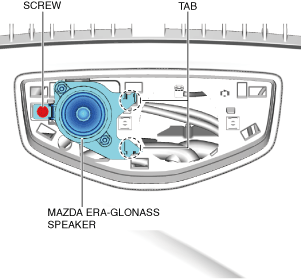

3.  Remove the screw.

am3zzw00020414

4.  Remove the tabs from dashboard.

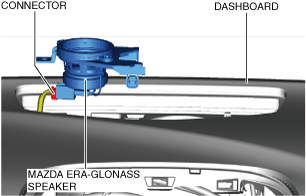

5.  Disconnect the connector.

am3zzw00020415

6.  Remove the Mazda ERA-GLONASS speaker.

7.  Install in the reverse order of removal.
