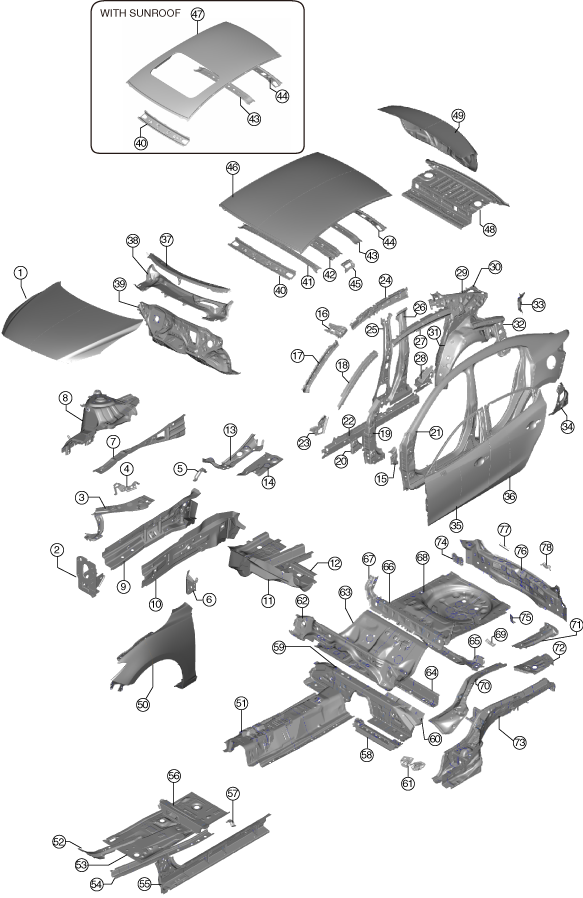

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700


4SD

am3zzb00000242

x:Applied
-:Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
X
X
0.70 {0.028}
2
Bumper bracket
X
-
X
2.00 {0.0787}
3
Shroud side member component
Shroud side stay
-
-
X
1.20 {0.0472}
Shroud side panel
-
X
X
0.90
{0.035}
4
Shroud upper reinforcement
-
-
X
0.80 {0.031}
5
Front fender junction
-
-
X
0.80 {0.031}
6
Light bracket
-
-
X
1.20 {0.0472}
7
Cowl side reinforcement
X
-
X
0.90
{0.035}
8
Wheel apron component
Cowl side reinforcement (lower)
-
X
X
0.80 {0.031}
Apron reinforcement No.3
X
-
X
1.20 {0.0472}
Suspension reinforcement (upper)
-
X
X
2.00 {0.0787}
Suspension reinforcement (lower)
-
-
X
0.80 {0.031}
Wheel apron reinforcement (rear)
-
X
X
1.00 {0.0394}
9
Front side frame (inner)
X
-
X
1.40 {0.0551}
10
Front side frame (outer)
-
X
X
1.40 {0.0551}
11
Front frame (rear) component
Front frame (rear)
X
-
X
1.80 {0.0709}
Side member
-
-
X
1.40 {0.0551}
12
Torque box
-
X
X
1.20 {0.0472}
13
Wiper bracket
-
X
X
1.40 {0.0551}
14
Cowl upper plate
-
X
X
1.20 {0.0472}
15
Cowl side reinforcement (upper)
-
X
X
1.20 {0.0472}
16
Front pillar upper reinforcement
-
-
X
0.65 {0.026}
17
Front pillar (inner)
X
-
-
1.80 {0.0709}
18
Front pillar reinforcement (upper)
X
-
-
1.40 {0.0551}
19
Hinge reinforcement
Upper
X
-
-
1.60 {0.0630}
Lower
X
-
X
1.40 {0.0551}
20
Hinge reinforcement (Inner, lower)
X
-
-
1.20 {0.0472}
21
Cabin side frame (outer) component
Cabin side frame (outer)
-
-
X
0.65 {0.026}
Rear fender rain rail
-
-
X
0.65 {0.026}
22
Side sill reinforcement
X
-
X
1.40 {0.0551}
23
Hinge pillar (inner)
X
-
X
1.20 {0.0472}
24
Roof rail (inner)
X
-
-
1.20 {0.0472}
25
Center pillar (inner)
-
X
-
1.20 {0.0472}
26
Center pillar reinforcement
Upper
X
-
-
2.00 {0.0787}
Lower
X
-
-
2.00 {0.0787}
27
Roof rail reinforcement
X
-
-
1.20 {0.0472}
28
Side sill reinforcement (rear)
X
-
X
1.60 {0.0630}
29
Rear pillar (inner)
-
-
-
0.60 {0.024}
30
Package gusset
-
-
-
0.90 {0.035}
31
Wheel housing (inner)
-
-
X
0.65 {0.026}
32
Suspension housing reinforcement
-
-
-
0.60 {0.024}
33
Corner plate
-
-
-
0.65 {0.026}
34
Rear fender (lower) panel
-
-
X
0.65 {0.026}
35
Front door (outer) panel
-
X
X
0.65 {0.026}
36
Rear door (outer) panel
-
X
X
0.65 {0.026}
37
Cowl panel
-
-
X
0.60 {0.024}
38
Dash (upper) panel
-
-
X
0.90 {0.035}
39
Dash (Lower) panel
-
-
X
0.80 {0.031}
40
Front header
-
-
X
0.65 {0.026}
41
Roof reinforcement No.1
-
-
-
0.50 {0.020}
42
Roof reinforcement No.2
X
-
-
1.00 {0.0394}
43
Roof reinforcement No.3
-
-
-
0.50 {0.020}
44
Rear header
-
-
-
0.70 {0.028}
45
Roof corner gusset
X
-
-
1.20 {0.0472}
46
Roof panel
-
-
-
0.70 {0.028}
47
Roof panel component (with sunroof)
Roof panel (with sunroof)
-
-
-
0.70 {0.028}
Roof reinforcement
X
-
-
2.30 {0.0906}
48
Package tray
-
-
-
0.55 {0.022}
49
Trunk lid (outer) panel
Upper
-
X
X
0.65 {0.026}
Lower
-
-
X
0.60 {0.024}
50
Front fender panel
-
-
X
0.65 {0.026}
51
Tunnel reinforcement
X
-
X
0.90 {0.035}
52
Floor reinforcement
X
-
-
1.80 {0.0709}
53
Front floor panel
-
-
X
0.60 {0.024}
54
Front B frame
Front
X
-
-
1.20 {0.0472}
Rear
X
-
-
1.00 {0.0394}
55
Side sill (inner)
Front
X
-
X
1.60 {0.0630}
Rear
X
-
X
1.40 {0.0551}
56
Crossmember No.2
X
-
-
0.90 {0.035}
57
C unit bracket
-
-
-
0.70 {0.028}
58
Crossmember No.2.5
X
-
-
1.40 {0.0551}
59
Crossmember No.3
X
-
-
1.60 {0.0394}
60
Anchorage reinforcement
-
X
X
0.90 {0.035}
61
Seat bracket
-
-
-
1.00 {0.0394}
62
Crossmember No.3 (inner)
-
-
X
0.60 {0.024}
63
Center floor panel
-
-
X
0.60 {0.024}
64
Crossmember No.4
-
-
X
0.90 {0.035}
65
Crossmember No.5
-
-
X
0.60 {0.024}
66
Rear floor reinforcement (front)
-
X
-
0.90 {0.035}
67
Front brace reinforcement
-
-
-
1.80 {0.0709}
68
Trunk floor panel
-
-
X
0.60 {0.024}
69
Fuel tank bracket
-
X
X
1.00 {0.0394}
70
Rear frame reinforcement
-
-
-
0.90 {0.035}
71
Floor side panel No.1 component
Reinforcement
X
-
-
1.20 {0.0472}
Floor side panel No.1
-
X
-
2.00 {0.0787}
72
Floor side panel No.2
-
-
X
0.65 {0.026}
73
Rear side frame component
Front
X
-
X
1.60 {0.0630}
Rear
X
-
X
1.40 {0.0551}
74
Rear bumper bracket
X
-
X
2.00 {0.0787}
75
Hook bracket
-
-
X
3.20 {0.126}
76
Rear end panel component
Rear end member
-
-
-
0.60 {0.024}
Rear end panel
-
-
X
0.60 {0.024}
77
Bumper reinforcement
-
-
X
1.00 {0.0394}
78
Rear bumper bracket (center)
-
-
X
1.00 {0.0394}

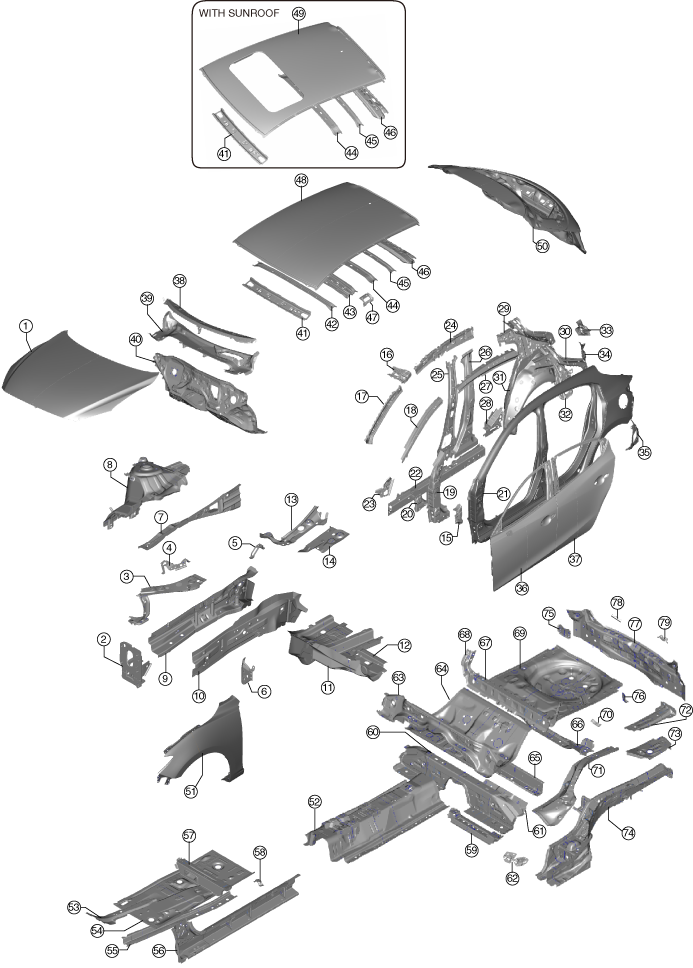

5HB

am3zzb00000243

x:Applied
-:Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
X
X
0.70 {0.028}
2
Bumper bracket
X
-
X
2.00 {0.0787}
3
Shroud side member component
Shroud side stay
-
-
X
1.20 {0.0472}
Shroud side panel
-
X
X
0.90 {0.035}
4
Shroud upper reinforcement
-
-
X
0.80 {0.031}
5
Front fender junction
-
-
X
0.80 {0.031}
6
Light bracket
-
-
X
1.20 {0.0472}
7
Cowl side reinforcement
X
-
X
0.90 {0.035}
8
Wheel apron component
Cowl side reinforcement (lower)
-
X
X
0.80 {0.031}
Apron reinforcement No.3
X
-
X
1.20 {0.0472}
Suspension reinforcement (upper)
-
X
X
2.00 {0.0787}
Suspension reinforcement (lower)
-
-
X
0.80 {0.031}
Wheel apron reinforcement (rear)
-
X
X
1.00 {0.0394}
9
Front side frame (inner)
X
-
X
1.40 {0.0551}
10
Front side frame (outer)
-
X
X
1.40 {0.0551}
11
Front frame (rear) component
Front frame (rear)
X
-
X
180 {0.0709}
Side member
-
-
X
1.40 {0.0551}
12
Torque box
-
X
X
1.20 {0.0472}
13
Wiper bracket
-
X
X
1.40 {0.0551}
14
Cowl upper plate
-
X
X
1.20 {0.0472}
15
Cowl side reinforcement (upper)
-
X
X
1.20 {0.0472}
16
Front pillar upper reinforcement
-
-
X
0.65 {0.026}
17
Front pillar (inner)
X
-
-
1.80 {0.0709}
18
Front pillar reinforcement (upper)
X
-
-
1.40 {0.0551}
19
Hinge reinforcement
Upper
X
-
-
1.60 {0.0630}
Lower
X
-
X
1.40 {0.0551}
20
Hinge reinforcement (Inner, lower)
X
-
-
1.20 {0.0472}
21
Cabin side frame (outer) component
Cabin side frame (outer)
-
-
X
0.65 {0.026}
Rear pillar (outer)
-
-
X
0.65 {0.026}
22
Side sill reinforcement
X
-
X
1.40 {0.0551}
23
Hinge pillar (inner)
X
-
X
1.20 {0.0472}
24
Roof rail (inner)
X
-
-
1.20 {0.0472}
25
Center pillar (inner)
-
X
-
1.20 {0.0472}
26
Center pillar reinforcement
Upper
X
-
-
2.00 {0.0787}
Lower
X
-
-
2.00 {0.0787}
27
Roof rail reinforcement
X
-
-
1.20 {0.0472}
28
Side sill reinforcement (rear)
X
-
X
1.60 {0.0630}
29
Rear pillar (inner)
-
-
-
0.60 {0.024}
30
D pillar reinforcement
-
-
-
0.90 {0.035}
31
Wheel housing (inner)
-
-
X
0.65 {0.026}
32
Suspension housing reinforcement
-
-
-
0.60 {0.024}
33
Corner junction
-
-
-
0.65 {0.026}
34
Corner plate
-
-
X
0.65 {0.026}
35
Rear fender (lower) panel
-
-
X
0.65 {0.026}
36
Front door (outer) panel
-
X
X
0.65 {0.026}
37
Rear door (outer) panel
-
X
X
0.65 {0.026}
38
Cowl panel
-
-
-
0.60 {0.024}
39
Dash (upper) panel
-
-
X
0.90 {0.035}
40
Dash (Lower) panel
-
-
X
0.80 {0.031}
41
Front header
-
-
X
0.65 {0.026}
42
Roof reinforcement No.1
-
-
-
0.50 {0.020}
43
Roof reinforcement No.2
X
-
-
1.00 {0.0394}
44
Roof reinforcement No.3
-
-
-
0.50 {0.020}
45
Roof reinforcement No.4
-
-
-
0.50 {0.020}
46
Rear header
-
-
-
0.70 {0.028}
47
Roof corner gusset
X
-
-
1.20 {0.0472}
48
Roof panel
-
-
-
0.70 {0.028}
49
Roof panel component (with sunroof)
Roof panel (with sunroof)
-
-
-
0.70 {0.028}
Roof reinforcement
X
-
-
2.30 {0.0906}
50
Liftgate (outer) panel
Upper
-
-
X
0.70 {0.028}
Lower
-
-
X
0.60 {0.024}
51
Front fender panel
-
-
X
0.65 {0.026}
52
Tunnel reinforcement
X
-
X
0.90 {0.035}
53
Floor reinforcement
X
-
-
1.80 {0.0709}
54
Front floor panel
-
-
X
0.60 {0.024}
55
Front B frame
Front
X
-
-
1.20 {0.0472}
Rear
X
-
-
1.00 {0.0394}
56
Side sill (inner)
Front
X
-
X
1.60 {0.0630}
Rear
X
-
X
1.40 {0.0551}
57
Crossmember No.2
X
-
-
0.90 {0.035}
58
C unit bracket
-
-
-
0.70 {0.028}
59
Crossmember No.2.5
X
-
-
1.40 {0.0551}
60
Crossmember No.3
X
-
-
1.60 {0.0630}
61
Anchorage reinforcement
-
X
X
0.90 {0.035}
62
Seat bracket
-
-
-
1.00 {0.0394}
63
Crossmember No.3 (inner)
-
-
X
0.60 {0.024}
64
Center floor panel
-
-
X
0.60 {0.024}
65
Crossmember No.4
-
-
X
0.90 {0.035}
66
Crossmember No.5
-
-
X
0.60 {0.024}
67
Rear floor reinforcement component
-
X
-
0.90 {0.035}
68
Front brace reinforcement
-
-
-
1.80 {0.0709}
69
Trunk floor panel
-
-
X
0.60 {0.024}
70
Fuel tank bracket
-
X
X
1.00 {0.0394}
71
Rear frame reinforcement
-
-
-
0.90 {0.035}
72
Floor side panel No.1 component
Reinforcement
X
-
-
1.20 {0.0472}
Floor side panel No.1
-
X
-
2.00 {0.0787}
73
Floor side panel No.2
-
-
X
0.65 {0.026}
74
Rear side frame component
Front
X
-
X
1.60 {0.0630}
Rear
X
-
X
1.40 {0.0551}
75
Rear bumper bracket
X
-
X
2.00 {0.0787}
76
Hook bracket
-
-
X
3.20 {0.126}
77
Rear end panel component
Rear end member
-
-
-
0.60 {0.024}
Rear end panel
-
-
X
0.60 {0.024}
78
Bumper reinforcement
-
-
X
1.00 {0.0394}
79
Rear bumper bracket (center)
-
-
X
1.00 {0.0394}
