ULTRA HIGH-TENSION STEEL [CONSTRUCTION]

• Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.

• Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.

• Enhanced shock absorption has improved the safety.

• Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.

• When drilling welded parts, use a well-ground drill bit.

• After welding, inspect the weld strength. If adhesion is poor, perform arc welding (plug welding).

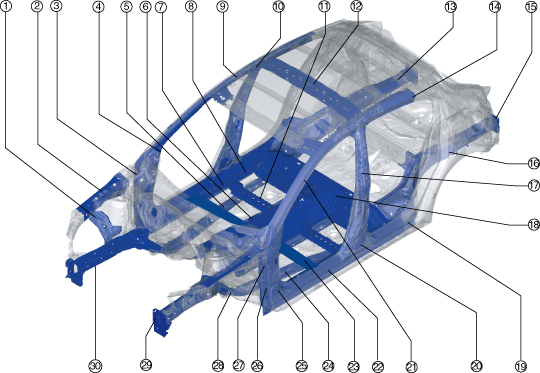

No.	Part name	Strength (MPa) {kgf/cm², psi}
1	Apron reinforcement No.3	590 {6016, 85572}
2	Cowl side reinforcement	590 {6016, 85572}
3	Hinge reinforcement (upper)	590 {6016, 85572}
4	Front pillar (inner)	590 {6016, 85572}
5	Front B frame	590 {6016, 85572}
6	Tunnel reinforcement	590 {6016, 85572}
7	Side sill (inner, front)	780 {7954, 113130}
8	Side sill (inner, rear)	590 {6016, 85572}
9	Roof rail (inner)	590 {6016, 85572}
10	Roof corner gusset	590 {6016, 85572}
11	Crossmember No.2.5	780 {7954, 113130}
12	Roof reinforcement No.2	590 {6016, 85572}
13	Floor side panel No.1 reinforcement	590 {6016, 85572}
14	Roof rail reinforcement	780 {7954, 113130}
15	Rear floor cover	780 {7954, 113130}
16	Rear side frame (front)	590 {6016, 85572}
17	Center pillar reinforcement (upper)	980 {9993, 142137}
18	Crossmember No.3	590 {6016, 85572}
19	Side sill reinforcement (rear)	590 {6016, 85572}
20	Center pillar reinforcement (lower)	590 {6016, 85572}
21	Front pillar reinforcement (upper)	780 {7954, 113130}
22	Side sill reinforcement	980 {9993, 142137}
23	Crossmember No.2	590 {6016, 85572
24	Floor reinforcement	590 {6016, 85572
25	Hinge reinforcement (lower)	590 {6016, 85572}
26	Hinge reinforcement (inner, lower)	590 {6016, 85572}
27	Hinge pillar (inner)	590 {6016, 85572}
28	Front frame (rear)	590 {6016, 85572}
29	Bumper bracket	590 {6016, 85572}
30	Front side frame (inner)	590 {6016, 85572}

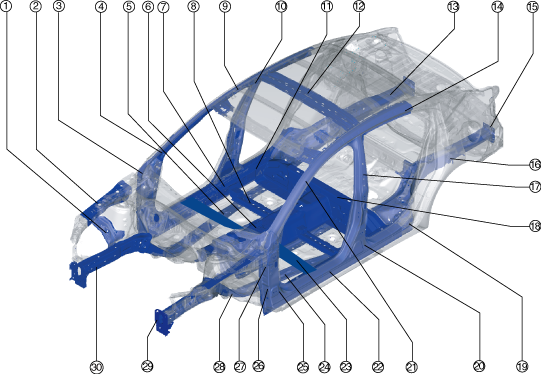

No.	Part name	Strength (MPa) {kgf/cm², psi}
1	Apron reinforcement No.3	590 {6016, 85572}
2	Cowl side reinforcement	590 {6016, 85572}
3	Hinge reinforcement (upper)	590 {6016, 85572}
4	Front pillar (inner)	590 {6016, 85572}
5	Front B frame	590 {6016, 85572}
6	Tunnel reinforcement	590 {6016, 85572}
7	Side sill (inner, front)	780 {7954, 113130}
8	Side sill (inner, rear)	590 {6016, 85572}
9	Roof rail (inner)	590 {6016, 85572}
10	Roof corner gusset	590 {6016, 85572}
11	Crossmember No.2.5	780 {7954, 113130}
12	Roof reinforcement No.2	590 {6016, 85572}
13	Floor side panel No.1 reinforcement	590 {6016, 85572}
14	Roof rail reinforcement	780 {7954, 113130}
15	Rear floor cover	780 {7954, 113130}
16	Rear side frame (front)	590 {6016, 85572}
17	Center pillar reinforcement (upper)	1500 {15296, 217557}
18	Crossmember No.3	590 {6016, 85572}
19	Side sill reinforcement (rear)	590 {6016, 85572}
20	Center pillar reinforcement (lower)	780 {7954, 113130}
21	Front pillar reinforcement (upper)	780 {7954, 113130}
22	Side sill reinforcement	980 {9993, 142137}
23	Crossmember No.2	590 {6016, 85572
24	Floor reinforcement	780 {7954, 113130}
25	Hinge reinforcement (lower)	590 {6016, 85572}
26	Hinge reinforcement (inner, lower)	590 {6016, 85572}
27	Hinge pillar (inner)	590 {6016, 85572}
28	Front frame (rear)	590 {6016, 85572}
29	Bumper bracket	590 {6016, 85572}
30	Front side frame (inner)	590 {6016, 85572}
