FRONT SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008605900

Symbol Mark

am6zzb00000349

Removal Procedure

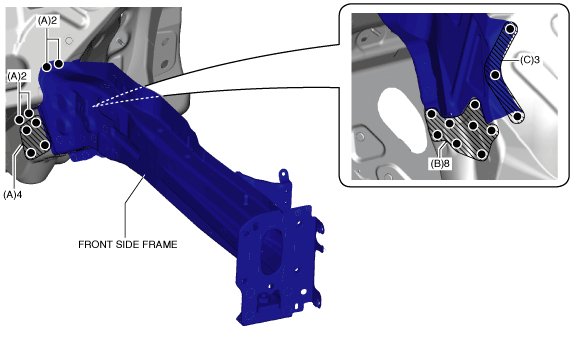

1.  Drill the 8 locations indicated by (A) shown in the figure.

2.  Drill the 8 locations indicated by (B) from the wheel housing shown in the figure.

3.  Drill the 3 locations indicated by (C) from the wheel housing shown in the figure.

Note

•  When drilling the 3 locations indicated by (C) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am3uub00000301

4.  Remove the front side frame from the front frame (rear).
