TORQUE BOX REMOVAL [PANEL REPLACEMENT]

id098008607100

Symbol Mark

am6zzb00000366

Removal Procedure

1.  Drill the 24 locations indicated by (A) shown in the figure.

Note

•  When drilling the 24 locations indicated by (A) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

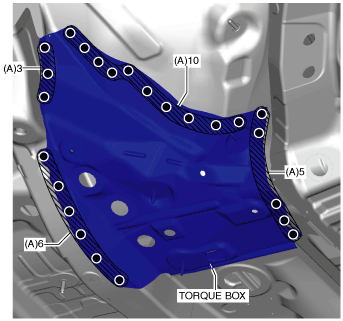

am3uub00000303

2.  Drill the 7 locations indicated by (B) from the inside shown in the figure.

am3zzb00000154

3.  Remove the torque box.
