CORNER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008610500

Symbol Mark

am3uub00000371

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

3.  Spot weld the 15 locations indicated shown in the figure, then install the corner plate.

am3uub00000372

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

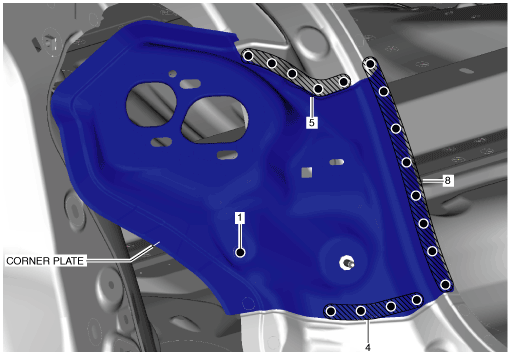

3.  Spot weld the 18 locations indicated shown in the figure, then install the corner plate.

am3uub00000373
