FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008618700

Symbol Mark

am6zzb00000459

Removal Procedure

4SD

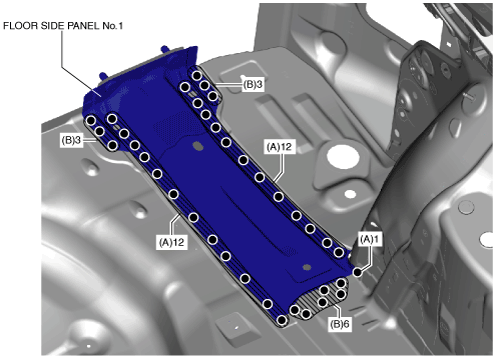

1.  Drill the 25 locations indicated by (A) shown in the figure.

Note

•  When drilling the 25 locations indicated by (A) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

2.  Drill the 12 locations indicated by (B) shown in the figure, then remove the floor side panel No.1.

am3uub00000418

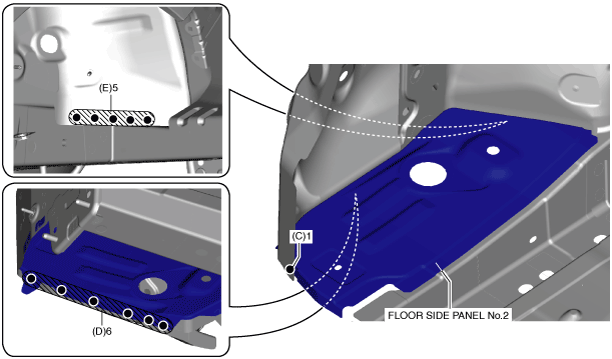

3.  Drill the 1 location indicated by (C) shown in the figure.

4.  Drill the 6 locations indicated by (D) from the rear side frame side shown in the figure.

5.  Drill the 5 locations indicated by (E) from the rear wheel housing side shown in the figure.

am3uub00000544

6.  Remove the floor side panel No.2.

5HB

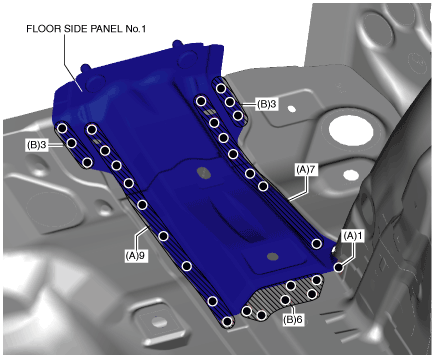

1.  Drill the 16 locations indicated by (A) shown in the figure.

Note

•  When drilling the 16 locations indicated by (A) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

2.  Drill the 12 locations indicated by (B) shown in the figure, then remove the floor side panel No.1.

am3uub00000420

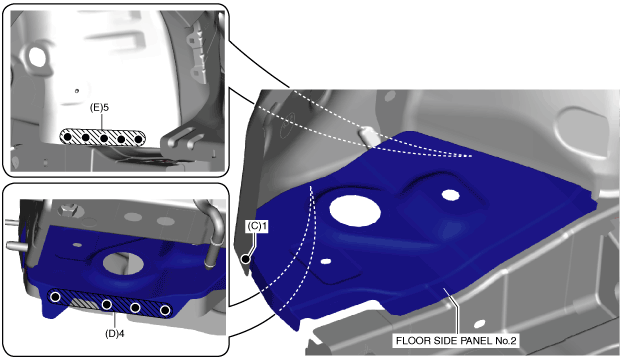

3.  Drill the 1 location indicated by (C) shown in the figure.

4.  Drill the 4 locations indicated by (D) from the rear side frame side shown in the figure.

5.  Drill the 5 locations indicated by (E) from the rear wheel housing side shown in the figure.

am3uub00000421

6.  Remove the floor side panel No.2.
