FLOOR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008618800

Symbol Mark

am3uub00000422

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

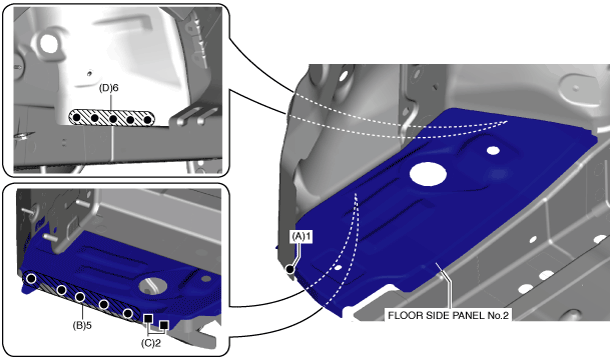

4.  Spot weld the 1 location indicated by (A) shown in the figure.

5.  Spot weld the 5 locations indicated by (B) the rear side frame side shown in the figure.

6.  Plug weld the 2 locations indicated by (C) the rear side frame side shown in the figure.

7.  Spot weld the 6 locations indicated by (D) the rear wheel housing side shown in the figure, then install the floor side panel No.2.

am3uub00000545

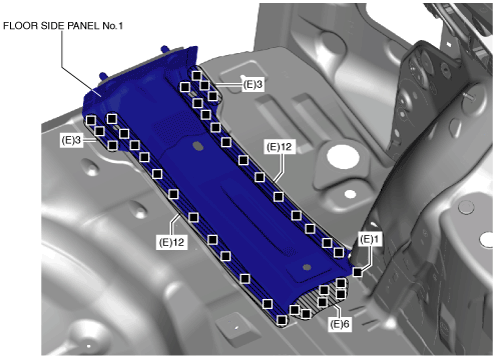

8.  Plug weld the 37 locations indicated by (E) shown in the figure, then install the floor side panel No.1.

am3uub00000546

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

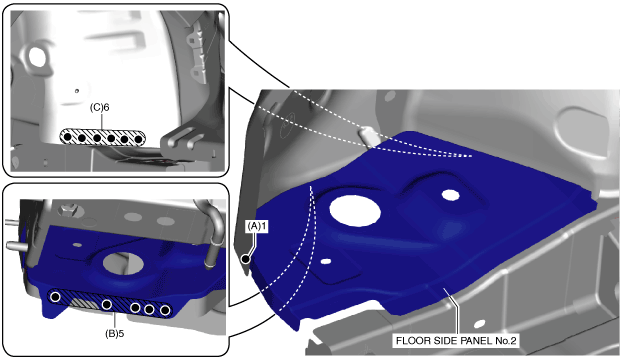

4.  Spot weld the 1 location indicated by (A) shown in the figure.

5.  Spot weld the 5 locations indicated by (B) the rear side frame side shown in the figure.

6.  Spot weld the 6 locations indicated by (C) the rear wheel housing side shown in the figure, then install the floor side panel No.2.

am3uub00000425

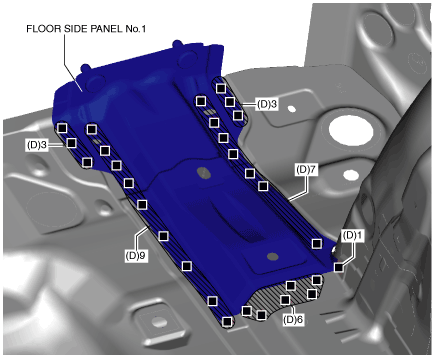

7.  Plug weld the 29 locations indicated by (D) shown in the figure, then install the floor side panel No.1.

am3uub00000426
