LIGHT BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008627200

Symbol Mark

am3zzb00000127

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

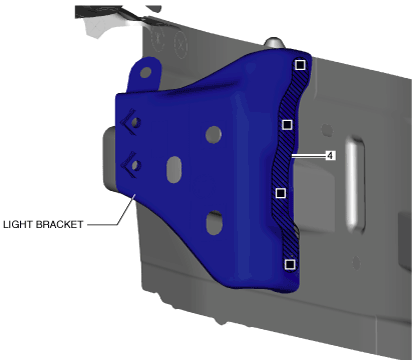

4.  Plug weld the 4 locations indicated shown in the figure, then install the light bracket.
