REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Mark

am6zzb00000445

Removal Procedure

4SD

1.  Drill the 13 locations indicated by (A) shown in the figure, then open the end of rear fender panel (lower).

2.  Drill the 46 locations indicated by (B) shown in the figure.

am3uub00000541

3.  Remove the rear end panel.

5HB

1.  Drill the 14 locations indicated by (A) shown in the figure, then open the end of rear fender panel (lower).

2.  Drill the 53 locations indicated by (B) shown in the figure.

3.  Drill the 10 locations indicated by (C) from the room side shown in the figure.

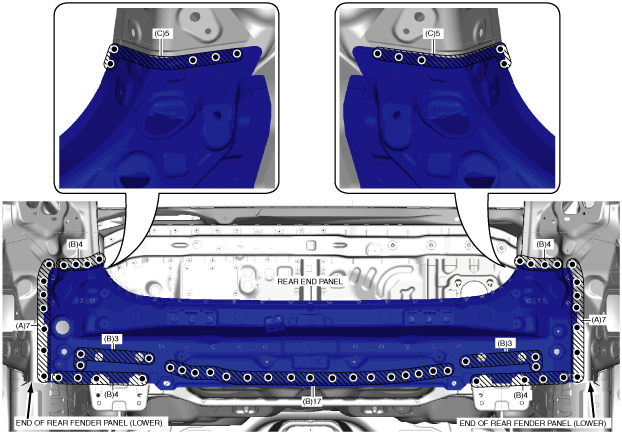

am3uub00000542

4.  Remove the rear end panel.
