REAR END PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744600

Symbol Mark

am6zzb00000539

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 46 locations indicated by (A) shown in the figure.

5.  Shut the end of rear fender panel (lower), then plug weld the 13 locations indicated by (B) shown in the figure.

am3uub00000539

6.  Install the rear end panel.

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

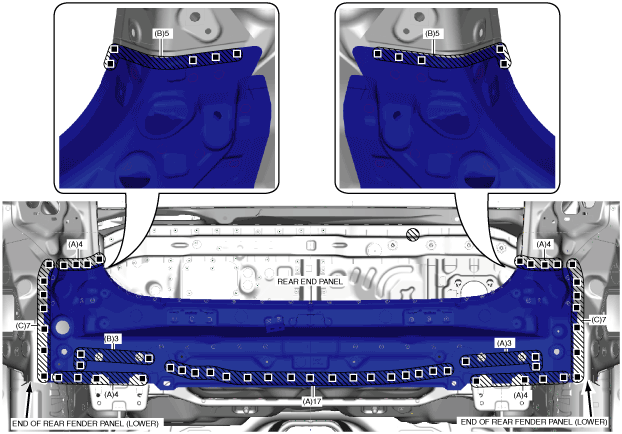

4.  Plug weld the 39 locations indicated by (A) shown in the figure.

5.  Plug weld the 10 locations indicated by (B) from the room side shown in the figure.

6.  Shut the end of rear fender panel (lower), then plug weld the 14 locations indicated by (B) shown in the figure.

am3uub00000540

7.  Install the rear end panel.
