FRONT PILLAR REMOVAL [PANEL REPLACEMENT]

id098008744700

Symbol Mark

am6zzb00000379

Removal Procedure

Caution

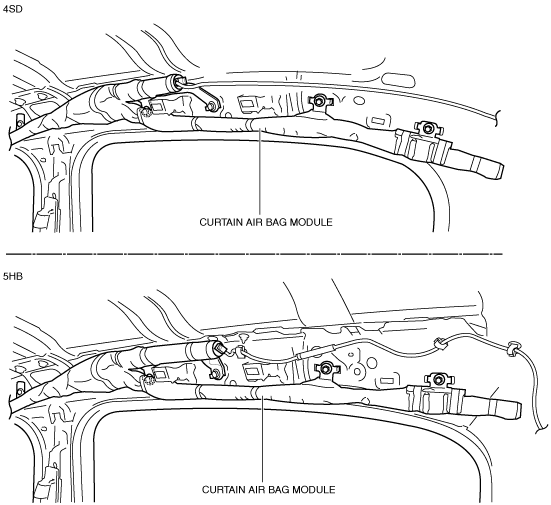

•  Remove the curtain air bag module to prevent damage before servicing.

Front-side

am3uub00000474

Rear-side

am3zzb00000093

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

am3zzb00000134

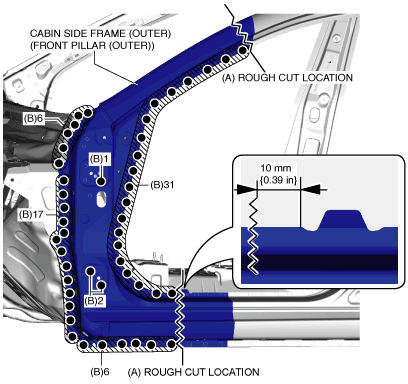

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

2.  Drill the 77 locations indicated by (B) shown in the figure, then remove the cabin side frame (outer) (front pillar (outer)).

am3zzb00000135

am3zzb00000110

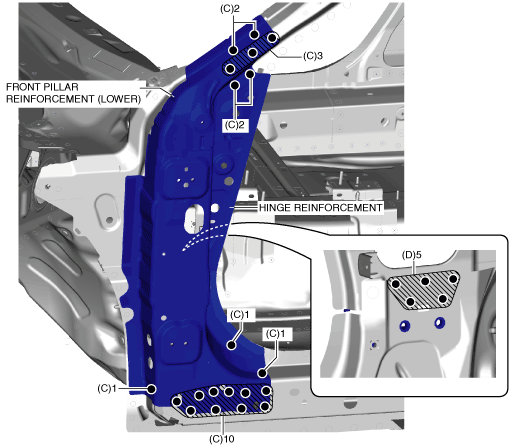

3.  Drill the 20 locations indicated by (C) shown in the figure.

4.  Drill the 5 locations indicated by (D) from the room side shown in the figure, then front pillar reinforcement (lower) and hinge reinforcement as a single unit.

am3uub00000330

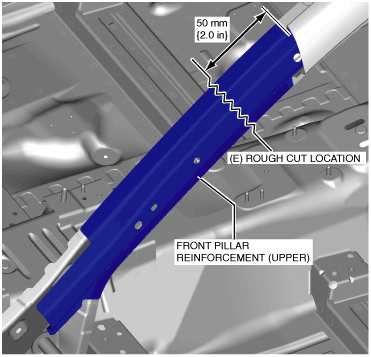

5.  Rough cut the location indicated by (E) shown in the figure, then remove the front pillar reinforcement (upper).

am3zzb00000136

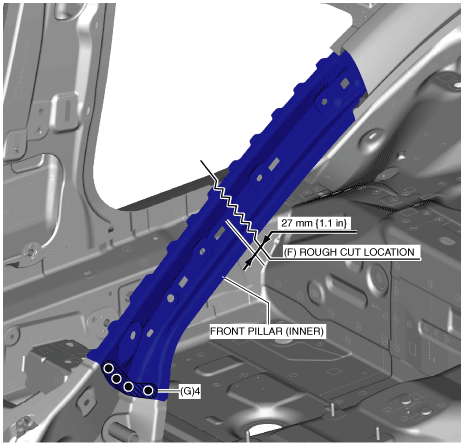

6.  Rough cut location indicated (F) shown in the figure.

7.  Drill the 4 locations indicated (G) shown in the figure, then remove the front pillar (inner).

am3zzb00000137
