REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Mark

am6zzb00000411

Removal Procedure

4SD

Caution

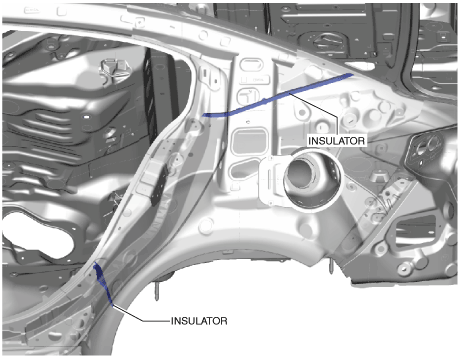

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

am3uub00000480

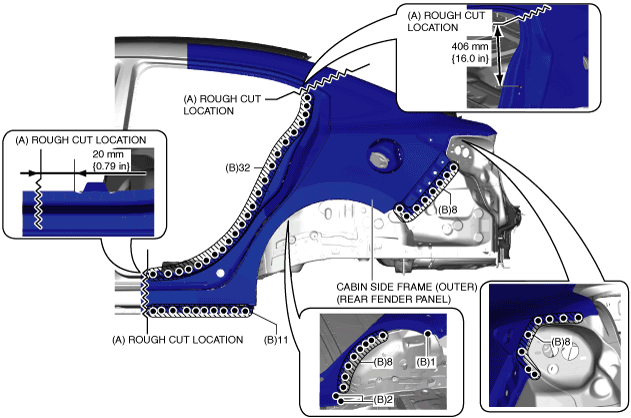

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

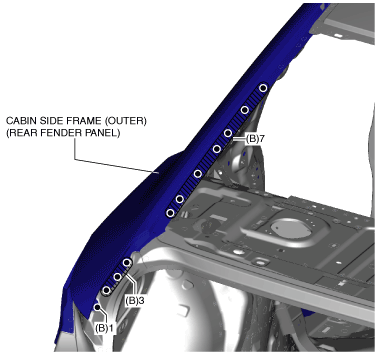

2.  Drill the 81 locations indicated by (B) shown in the figure.

am3uub00000352

am3uub00000353

3.  Remove the cabin side frame (outer) (rear fender panel).

5HB

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

am3uub00000481

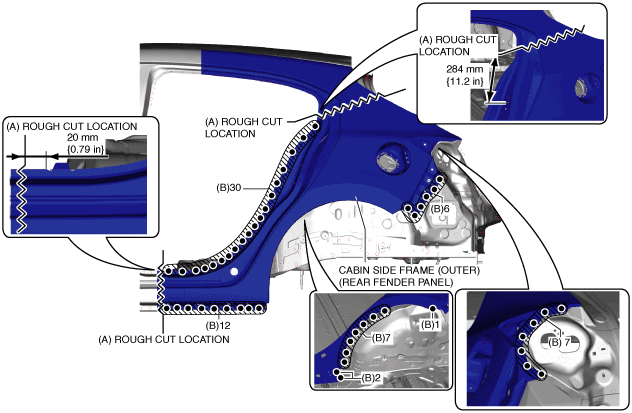

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

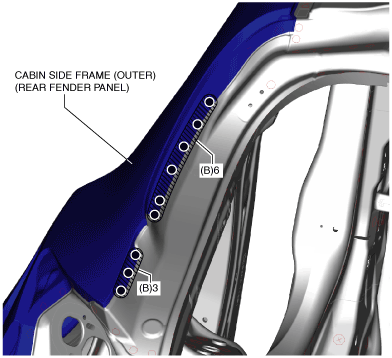

2.  Drill the 74 locations indicated by (B) shown in the figure.

am3zzb00000158

am3uub00000356

3.  Remove the cabin side frame (outer) (rear fender panel).
